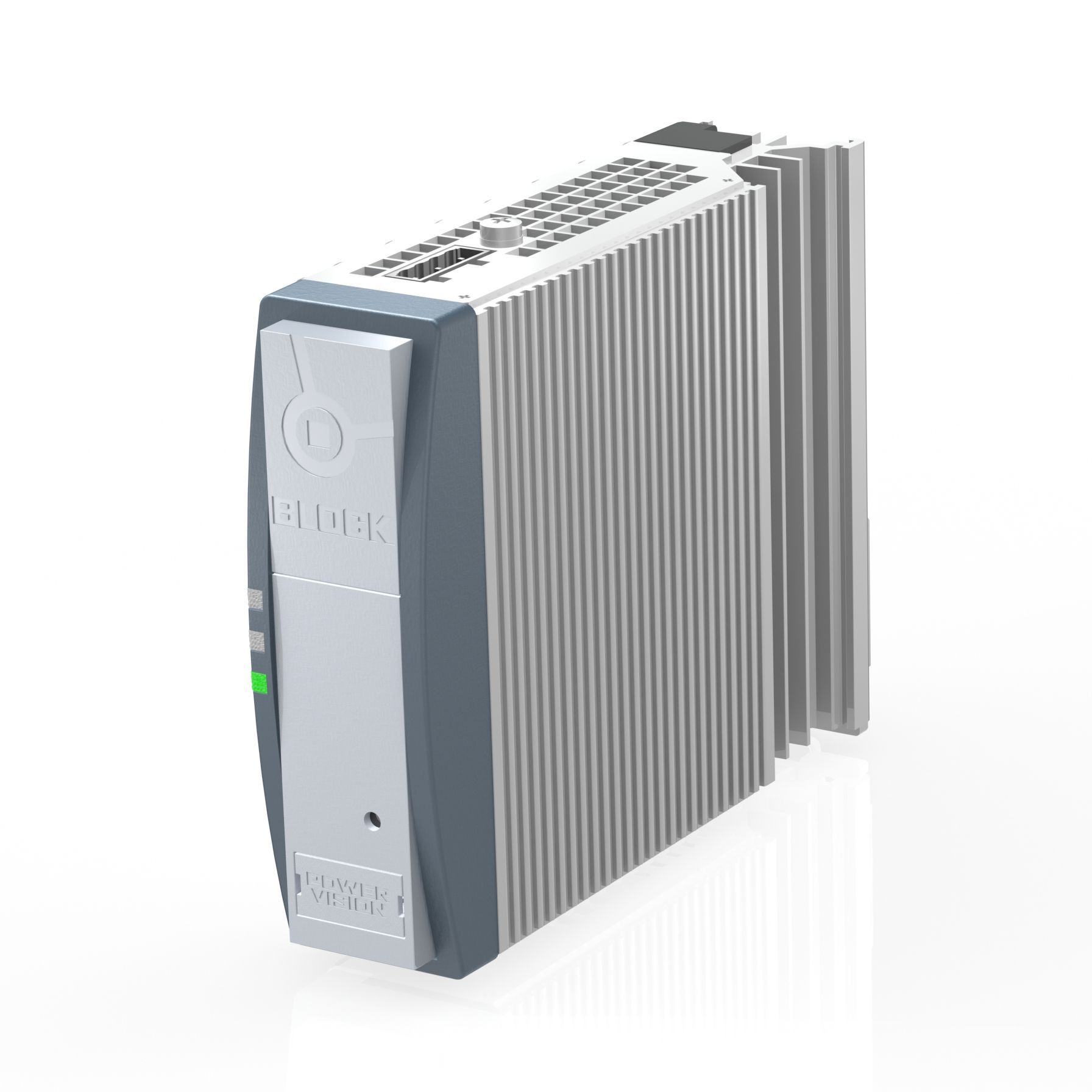

Primary switched mode power supply, single-phase

PVSE 230/24-3B - Discontinued items - no longer available

Characteristics

Benefits

 Stabilised and adjustable output voltage

 Up to 200 % Real Power Boost for 4 seconds

 Top Boost to trip conventional circuit breakers

 DC OK signalling

 Stand-by-input

 Parallel connection option

 Service-friendly spring-loaded connector system

 With active inrush current limiter

Product Primary switched mode power supply, single-phase
Order number PVSE 230/24-3B
Input
Rated input voltage 100 Vac to 240 Vac
Input voltage range 85 Vac to 264 Vac
Input voltage range 120 Vdc to 373 Vdc
Rated input current (rated load) (100Vac) 0.86 A
Rated input current (rated load) (230Vac) 0.51 A
Internal input fuse 2 AT
Rated frequency range AC 44 Hz to 66 Hz
Rated frequency range DC 0 Hz
Inrush current limitation NTC < 5 A
Recommended preliminary fuse 6A, 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (100Vac) 10.0 ms
Mains failure bridging (rated load) (230Vac) 70.0 ms
Output
Power 72 W
Rated output voltage 24 Vdc
Rated Output Current 3 A
Output voltage range 22 Vdc to 29.5 Vdc
Output Current Limitation (Constant Current) typ. 3.3 A
Ripple (rated load) typ. 70 mVss
Power boost 6,5 A / 4 s (5,8 A / 8 s)
Top boost 14 A / 25 ms
Power factor 0.6
Max. power loss 15 W
Max. feedback resistance 35 Vdc
Verlustleistung Leerlauf (230Vac) 3.00 W
Verlustleistung Nennlast (230Vac) 8.80 W
Parallel connection possible Yes, for increased power
Series connection possible Yes
Signaling
Signal output Relay contact
Status display Green, red LED
Environment
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage Temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 30 % to 85 %
Cooling type natural convection
Protection and Safety
Degree of pollution 2
Size and Weight
Width 40 mm / 1.57 in
Height 127 mm / 5 in
Depth 163.5 mm / 6.44 in
Weight 0.91 kg / 2.01 lbs
