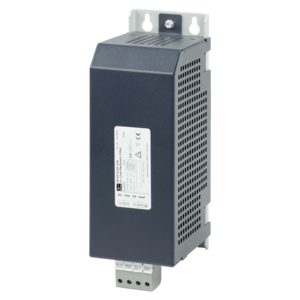

Harmonic filter

HF1P 1,01-230

Characteristics

Benefits

 Sinusoidal current consumption from the main in devices with uncontrolled B2U diode rectifiers

 Compliance with EN 61000-3-2, EN 61000-3-12

 Support in the compliance with IEEE 519, D-A-CH-CZ

 Power factor 0,95 at rated current

 Operation at 50 Hz possible

 Use of the HF1P as a central sum filter for multiple converters possible

Product Harmonic filter
Order number HF1P 1,01-230
Series HF1P
Inductance 42 mH
Rated current 4.4 Aac
Linear current 6.6 Aac
Rated voltage range 207 V to 253 V
Rated voltage 230 V
Phases 1
Frequency range 50 Hz
Motor or converter power 0.75 kW / 1.01 HP
EN Insulation class H (180°C)
UL Insulation class class 180
Duty Cycle 100 %
Power loss 55.00 W
Wire material Copper
General
Duty Cycle 100 %
Cooling type AN
Switching group Ia0
Environment
Ambient temperature -10 °C to 40 °C / 14 °F to 104 °F
Max. installation height 1,000 m / 3,281 ft
Protection and Safety
Protection type IP 20
Protection class (prepared) I
Degree of contamination 2
Electrical Connections
Input terminal Screw terminal
Output terminal Screw terminal
Terminal PE Bolt connection
Size and Weight
Width 109 mm / 4.29 in
Height 138 mm / 5.43 in
Depth 300 mm / 11.81 in
Weight 5.6 kg / 12.346 lbs
Low Voltage Directive EN 61558-2-20
RoHS compliant EN IEC 63000
