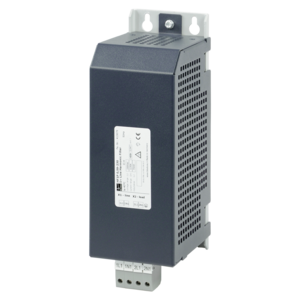

Harmonic filter
HF1P 2,73-230
Characteristics
Benefits
› Sinusoidal current consumption from the main in devices with uncontrolled B2U diode rectifiers
› Compliance with EN 61000-3-2, EN 61000-3-12
› Support in the compliance with IEEE 519, D-A-CH-CZ
› Power factor 0,95 at rated current
› Operation at 50 Hz possible
› Use of the HF1P as a central sum filter for multiple converters possible
| Product | Harmonic filter |
| Order number | HF1P 2,73-230 |
| Series | HF1P |
| Inductance | 14.7 mH |
| Rated current | 11.9 Aac |
| Linear current | 17.9 Aac |
| Rated voltage range | 207 V to 253 V |
| Rated voltage | 230 V |
| Phases | 1 |
| Frequency range | 50 Hz |
| Motor or converter power | 2.2 kW / 2.95 HP |
| EN Insulation class | H (180°C) |
| UL Insulation class | class 180 |
| Duty Cycle | 100 % |
| Power loss | 50.00 W |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
| Switching group | Ia0 |
Environment
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP 20 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 132 mm / 5.2 in |
| Height | 182 mm / 7.17 in |
| Depth | 385 mm / 15.16 in |
| Weight | 11.2 kg / 24.692 lbs |
| Low Voltage Directive | EN 61558-2-20 |
| RoHS compliant | EN IEC 63000 |
