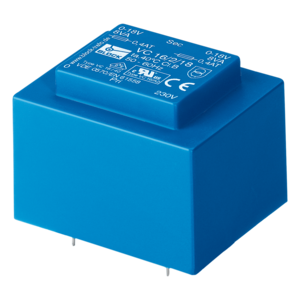

PCB transformer, separating transformer
VC 10/2/24
Characteristics
General data
The PCB transformers of the VC series ensure galvanic isolation of the primary circuit from the secondary circuit. Thanks to the unique XtraDenseFill resin encapsulation process, the transformers provide permanent corrosion protection, high insulation value, and maximum electrical conductivity.
Benefits
› Separating transformer according to EN (IEC) 61558-2-1
› Minimal size with high performance
› With dual output coils for series or parallel connection
› Self-extinguishing encapsulation material
| Product | PCB transformer, separating transformer |
| Order number | VC 10/2/24 |
| Series | VC |
| Power | 10 VA |
| Input | 230 V |
| Output | 2 x 24 V • 0.208 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| No-Load Losses | 1.8 W |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 74 % |
General
| Short circuit proof | not short-circuit proof |
| Switching group | Iii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Degree of contamination | 1 |
Electrical Connections
| Input terminal | Pin |
| Output terminal | Pin |
Size and Weight
| Width | 51 mm / 2.01 in |
| Height | 34.6 mm / 1.36 in |
| Depth | 43 mm / 1.69 in |
| Weight | 0.291 kg / 0.642 lbs |
| Low Voltage Directive | EN 61558-2-1 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
