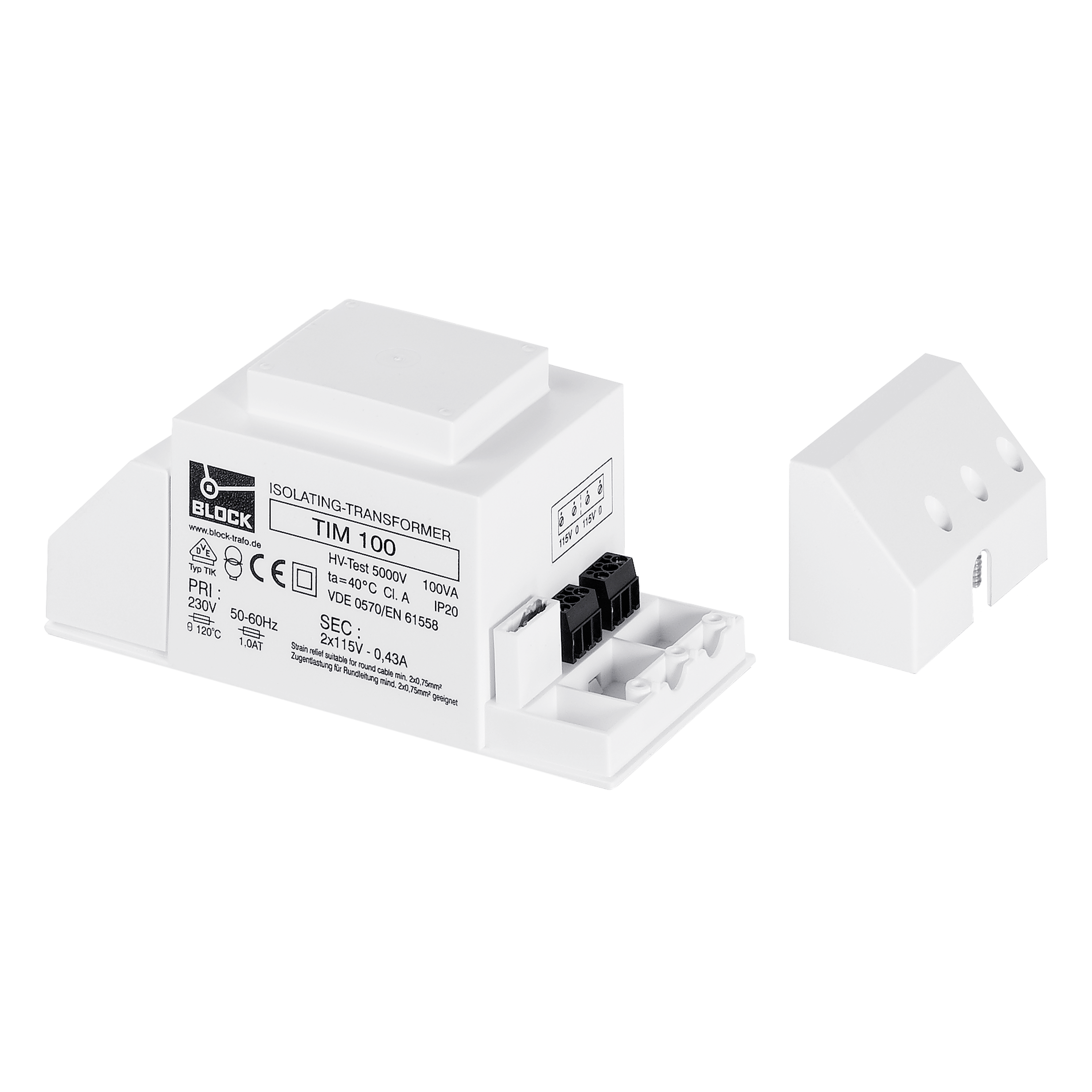

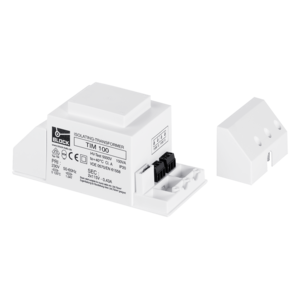

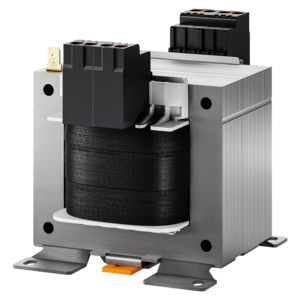

Isolating transformer
TIM 100
Characteristics
General data
The isolating transformers of the TIM series ensure safe galvanic isolation of the primary circuit from the secondary circuit. The transformers are manufactured according to EN (IEC) 61558-2-4 and have a protection class of IP 20.
Benefits
› Integrated short-circuit and overload protection
› Dual output coils for series or parallel connection
› Excellent moisture protection and low noise emission thanks to XtraDenseFill resin encapsulation
› Screw terminal connections under cover with strain relief
| Product | Isolating transformer |
| Order number | TIM 100 |
| Series | TIM |
| Power | 100 VA |
| Input | 230 V |
| Output | 2 x 115 V • 0.43 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| No-Load Losses | 4.9 W |
| EN Insulation class | A (105°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 88 % |
General
| Short circuit proof | conditionally short-circuit proof |
| Switching group | Iii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP 20 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
Size and Weight
| Width | 77 mm / 3.03 in |
| Height | 90 mm / 3.54 in |
| Depth | 166 mm / 6.54 in |
| Weight | 2.003 kg / 4.416 lbs |
| Low Voltage Directive | EN 61558-2-4 |
| VDE Approval |
VDE 0570-2-x (DIN EN 61558-2-x) |
