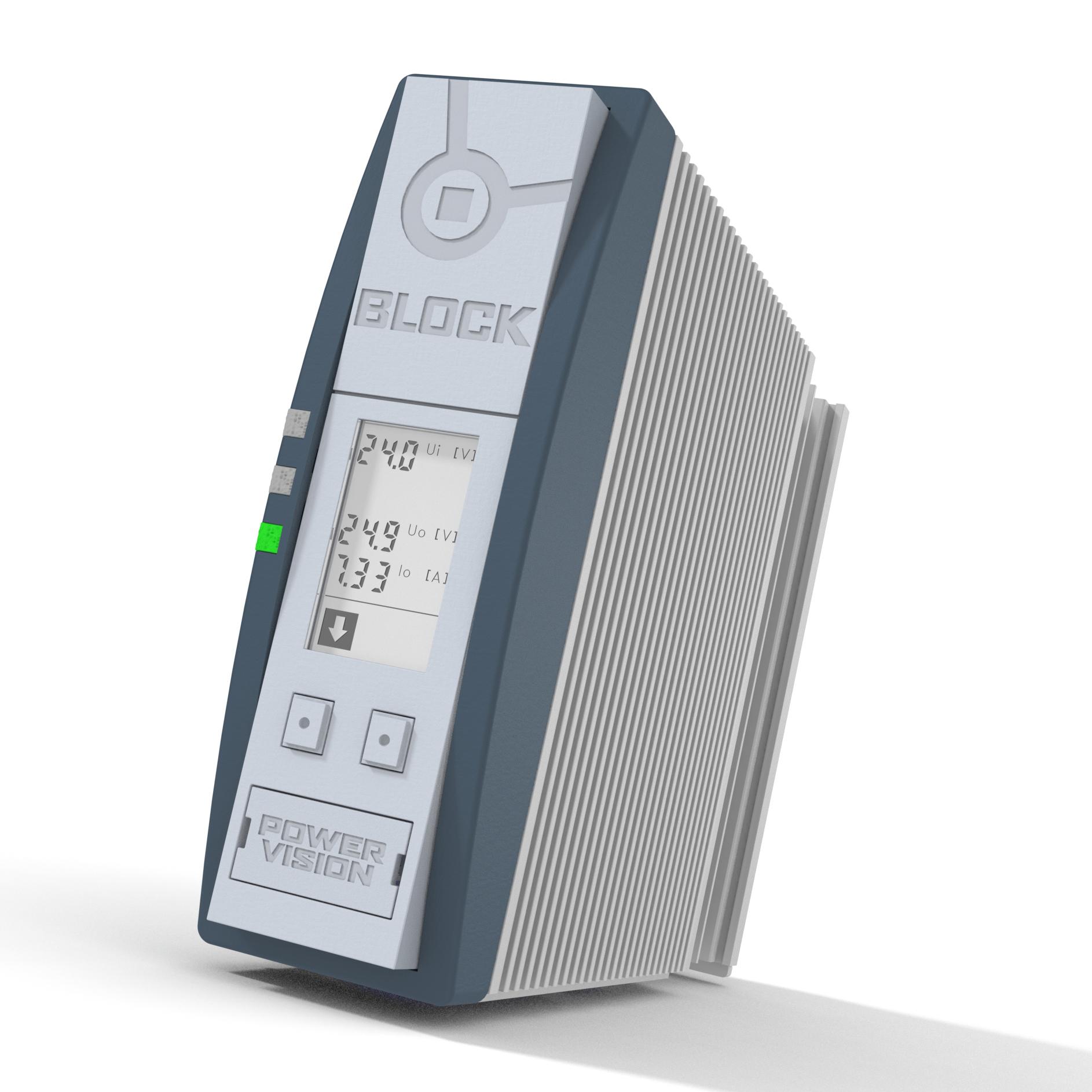

Charge and control unit

PVUA 24/24-40 - Discontinued items - no longer available

Characteristics

Benefits

 Electronic overcurrent and short-circuit protection

 Active current limiting in the event of an error

 Automatic detection of connected battery module

 Reliable early warning signal when battery life expectancy is declining

 Extended life expectancy through temperature controlled battery management

 Service-friendly spring-loaded connector system

 Isolated signal contact

 Reverse polarity protection

 Exhaustive discharge protection for batteries

 Interface to visualise and adjust relevant data

 Current and voltage monitoring

 Active signal outputs for function monitoring

 RS-232 interface

 Reliable supply of industrial PC's

Product Charge and control unit
Order number PVUA 24/24-40
Series PVUA
Input
Rated input voltage 24 Vdc
Input voltage range 18 Vdc to 29 Vdc
Output
Rated output voltage 24 Vdc
Rated Output Current 40 A
Output voltage range 20 Vdc to 24 Vdc
Max. feedback resistance 35 Vdc
Parallel connection possible Yes
Series connection possible No
Signaling
Signal output Relay contact
Status display Green, yellow, red LED
Environment
Ambient temperature -10 °C to 60 °C / 14 °F to 140 °F
Storage temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Size and Weight
Width 57 mm / 2.24 in
Height 127 mm / 5 in
Depth 163.5 mm / 6.44 in
