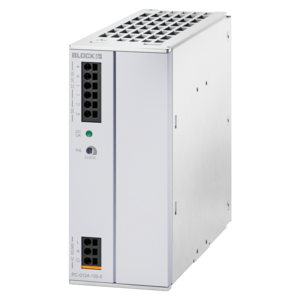

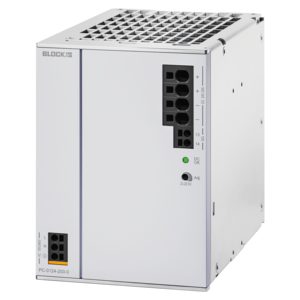

Capacitive uninterruptible power supply
PC-0424-017-0
Characteristics
Benefits
› Up to 40 A output current
› Long buffer times up to the minute range
› Minimal maintenance due to long life of the ultra-capacitors
› Parameterization via rotary switch or via USB interface
› Shock and vibration-proof USB socket
› Stabilized output voltage
› Expandable by capacity modules
› 1.7 kWs internal capacity
› 3 years warranty
| Product | Capacitive uninterruptible power supply |
| Order number | PC-0424-017-0 |
| Series | CAP UPS |
Input
| Rated input voltage | 24 Vdc |
| Input voltage range | 23 Vdc to 29 Vdc |
Output
| Rated output voltage | 24 Vdc |
| Rated Output Current | 20 A |
| Output voltage range | 22 Vdc to 28 Vdc |
| Max. feedback resistance | 35 Vdc |
| Rated capacity | 1700 Ws |
| Parallel connection possible | Yes |
| Series connection possible | No |
Signaling
| Signal output | Relay contact |
| Status display | Green, yellow, red LED |
| Communication | USB 2.0 |
Environment
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
| Required minimum distance (side) | 0 mm |
| Required minimum distance (top/bottom) | 40 mm |
Size and Weight
| Width | 55 mm / 2.17 in |
| Height | 127 mm / 5 in |
| Depth | 139 mm / 5.47 in |
| Weight | 0.78 kg / 1.72 lbs |
