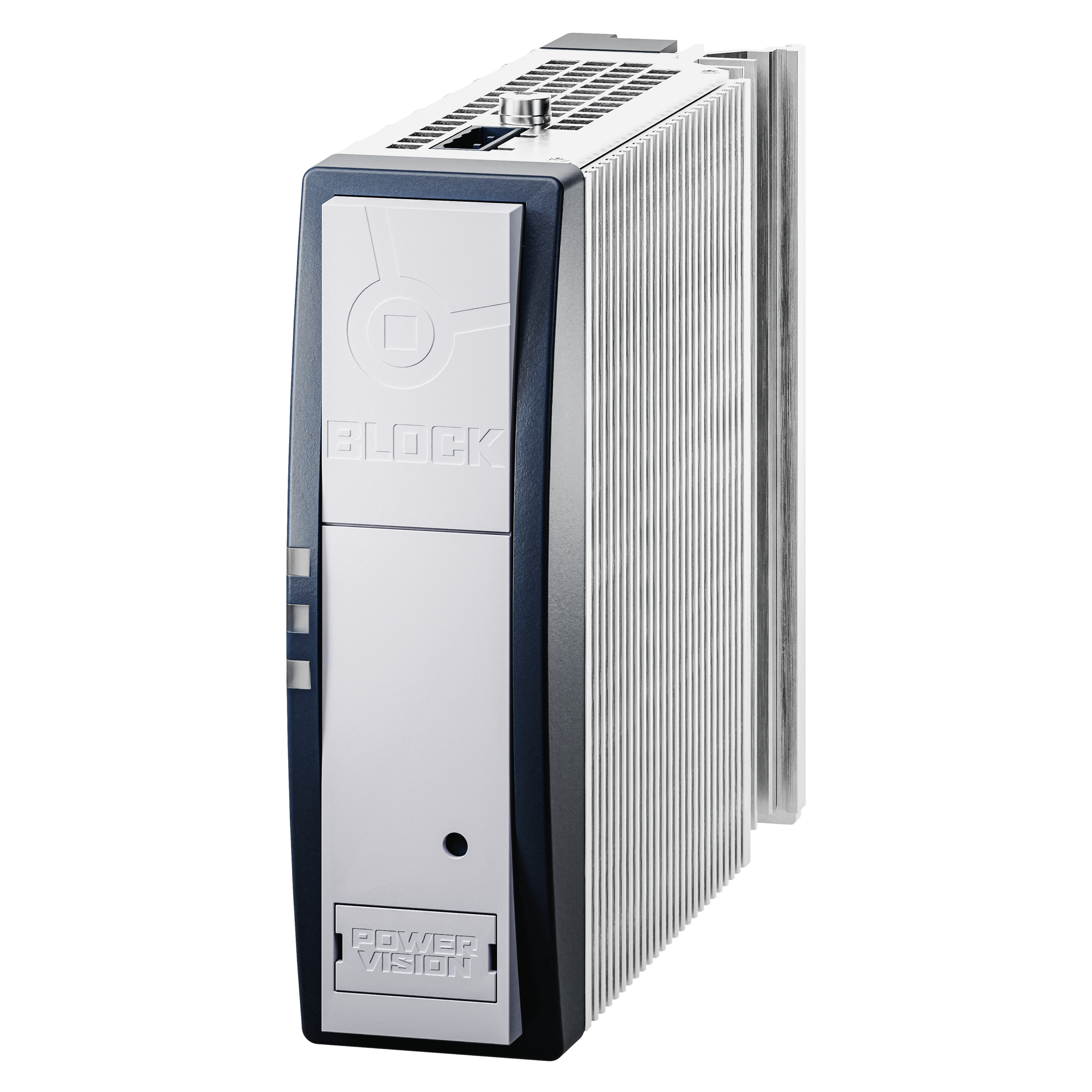

PVSE 230/24-3 - Discontinued items - no longer available

Download data sheet

Characteristics

› Stabilised and adjustable output voltage

› Up to 200 % Real Power Boost for 4 seconds

› Top Boost to trip conventional circuit breakers

› DC OK signalling

› Stand-by-input

› Parallel connection option

› Service-friendly spring-loaded connector system

Technical Data

Product	Primary switched mode power supply, single-phase
Order number	PVSE 230/24-3
Series	PVSE 230

Rated input voltage	100 Vac to 240 Vac
Input voltage range	85 Vac to 264 Vac
Input voltage range	120 Vdc to 373 Vdc
Rated input current (rated load) (100Vac)	0.86 A
Rated input current (rated load) (230Vac)	0.51 A
Internal input fuse	2 AT
Rated frequency range AC	44 Hz to 66 Hz
Rated frequency range DC	0 Hz
Inrush current limitation NTC <	30 A
Recommended preliminary fuse	6A, 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (100Vac)	10.0 ms
Mains failure bridging (rated load) (230Vac)	70.0 ms

Power	72 W
Rated output voltage	24 Vdc
Rated Output Current	3 A
Output voltage range	22 Vdc to 29.5 Vdc
Output Current Limitation (Constant Current) typ.	3.3 A
Ripple (rated load) typ.	70 mVss
Power boost	6,5 A / 4 s (5,8 A / 8 s)
Top boost	14 A / 25 ms
Power factor	0.6
Max. power loss	15 W
Max. feedback resistance	35 Vdc
Verlustleistung Leerlauf (230Vac)	3.00 W
Verlustleistung Nennlast (230Vac)	8.80 W
Parallel connection possible	Yes, for increased power
Series connection possible	Yes

Signal output	Relay contact
Status display	Green, red LED

Conditions

Ambient temperature	-25 °C to 70 °C / -13 °F to 158 °F
Storage temperature	-25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation	30 % to 85 %
Cooling type	natural convection
