Batteriemodul

PST-0124-070-10

Download data sheet

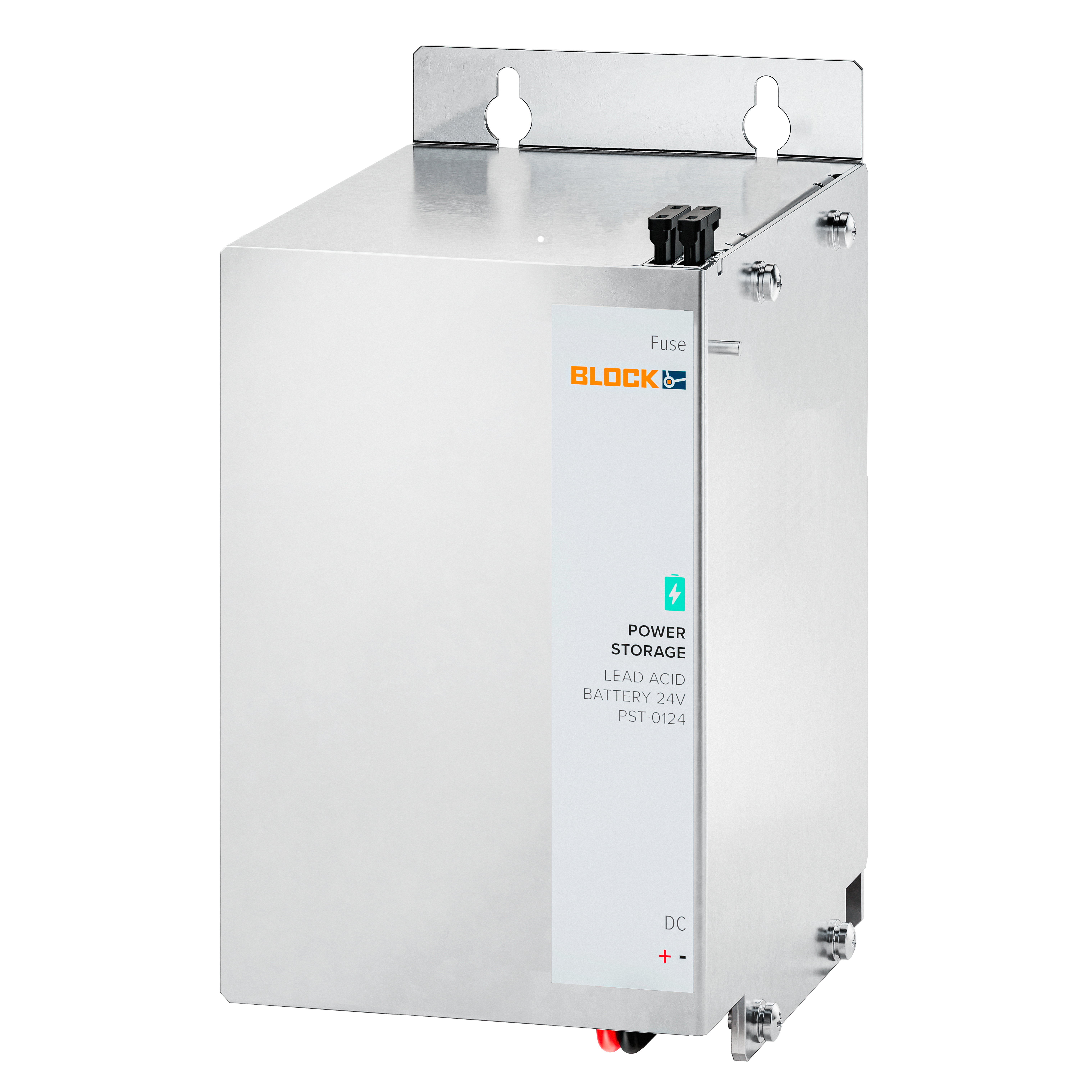

Image of BLOCK Item: PST-0124-070-10

Characteristics

Benefits

› Space-saving battery modul

› Temperature-controlled charging via the upstream charging and control unit

› Pre-assembled connection cables

Product Batteriemodul
Order number PST-0124-070-10
Series POWER STORAGE
Input
Rated input voltage 24 Vdc
Input voltage range 24 Vdc
Output
Rated output voltage 24 Vdc
Rated Output Current 40 A
Output voltage range 24 Vdc
Rated capacity 7 Ah
Parallel connection possible Ja
Environment
Ambient temperature -15 °C to 40 °C / 5 °F to 104 °F
Storage temperature -20 °C to 40 °C / -4 °F to 104 °F
Protection and Safety
Protection class according to EN 61140 III
Size and Weight
Width 111 mm / 4.37 in
Height 193 mm / 7.6 in
Depth 159 mm / 6.26 in
Weight 5.6 kg / 12.346 lbs
