Output distribution module

PMM-02 - Discontinued items - no longer available

Download data sheet

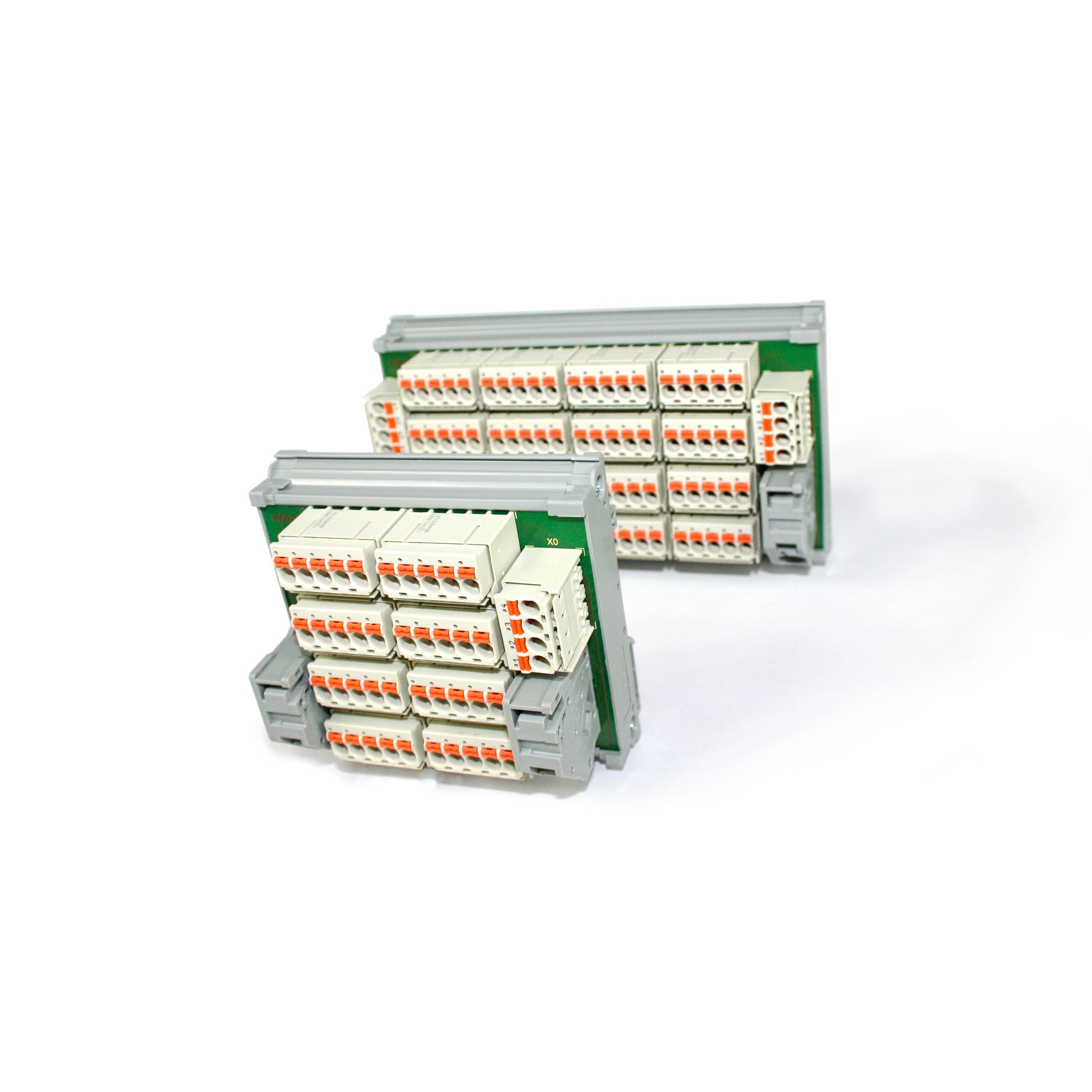

Image of BLOCK Item: PMM-02 - Discontinued items - no longer available Image of BLOCK Item: PMM-02 - Discontinued items - no longer available

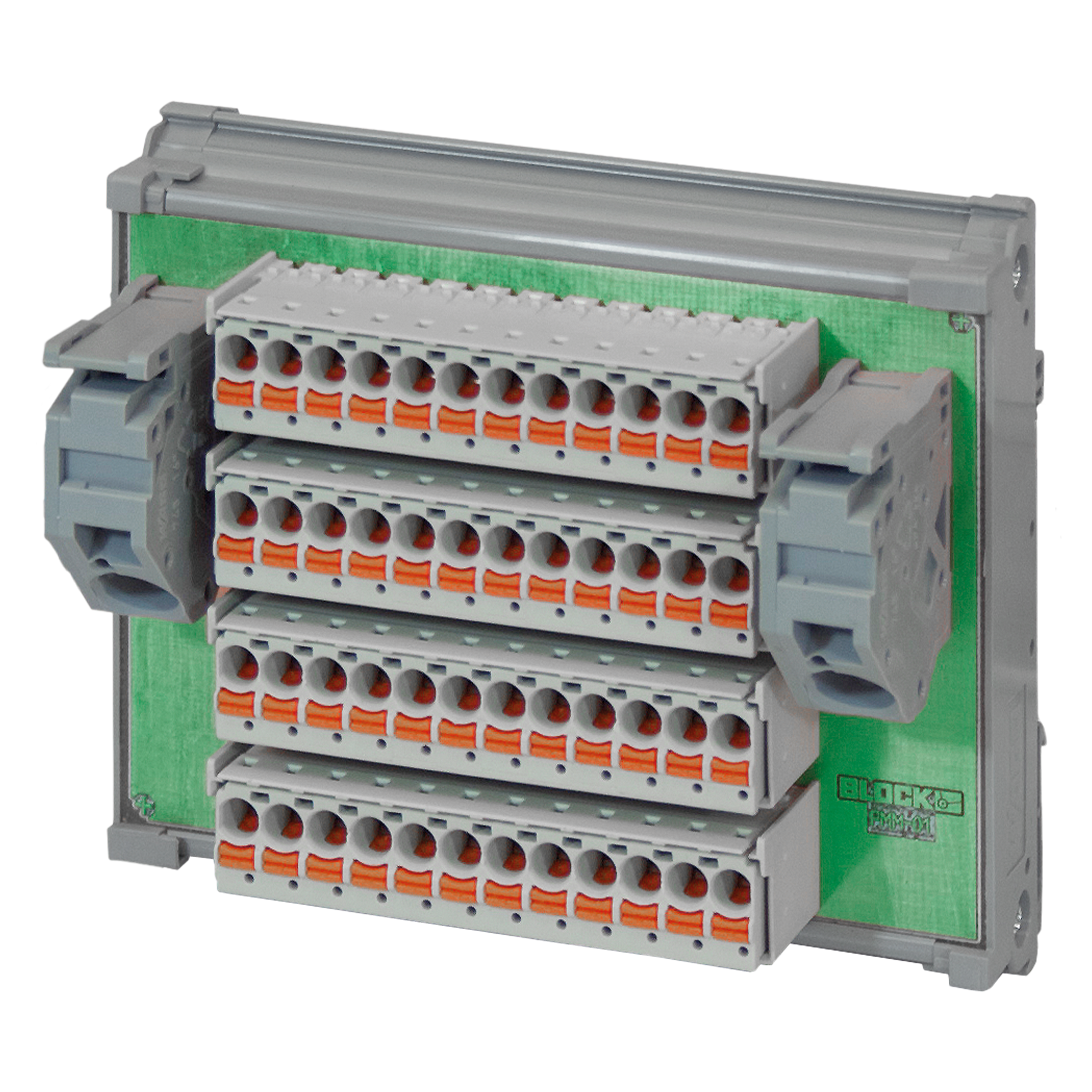

Picture shows PMM-01
Picture Objective

Characteristics

Benefits

› Plug-in picoMAX® connectors enable pre-wiring and electrical isolation of current paths

› Protection against interchanging connectors with optional coding keys

› Cable strain relief, thanks to optional strain relief plate

› Jumper option of the 0 V feed to adjacent modules via optional jumper comb

Product Search
Product Output distribution module
Order number PMM-02
Series PMM
Input
Rated input voltage 24 Vdc
Input voltage range 24 Vdc
Output
Rated output voltage 24 Vdc
Rated Output Current 10 A
Environment
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage temperature -40 °C to 85 °C / -40 °F to 185 °F
Cooling type natural convection
Size and Weight
Width 183 mm / 7.2 in
Height 85 mm / 3.35 in
Depth 49 mm / 1.93 in
Weight 0.33 kg / 0.728 lbs
