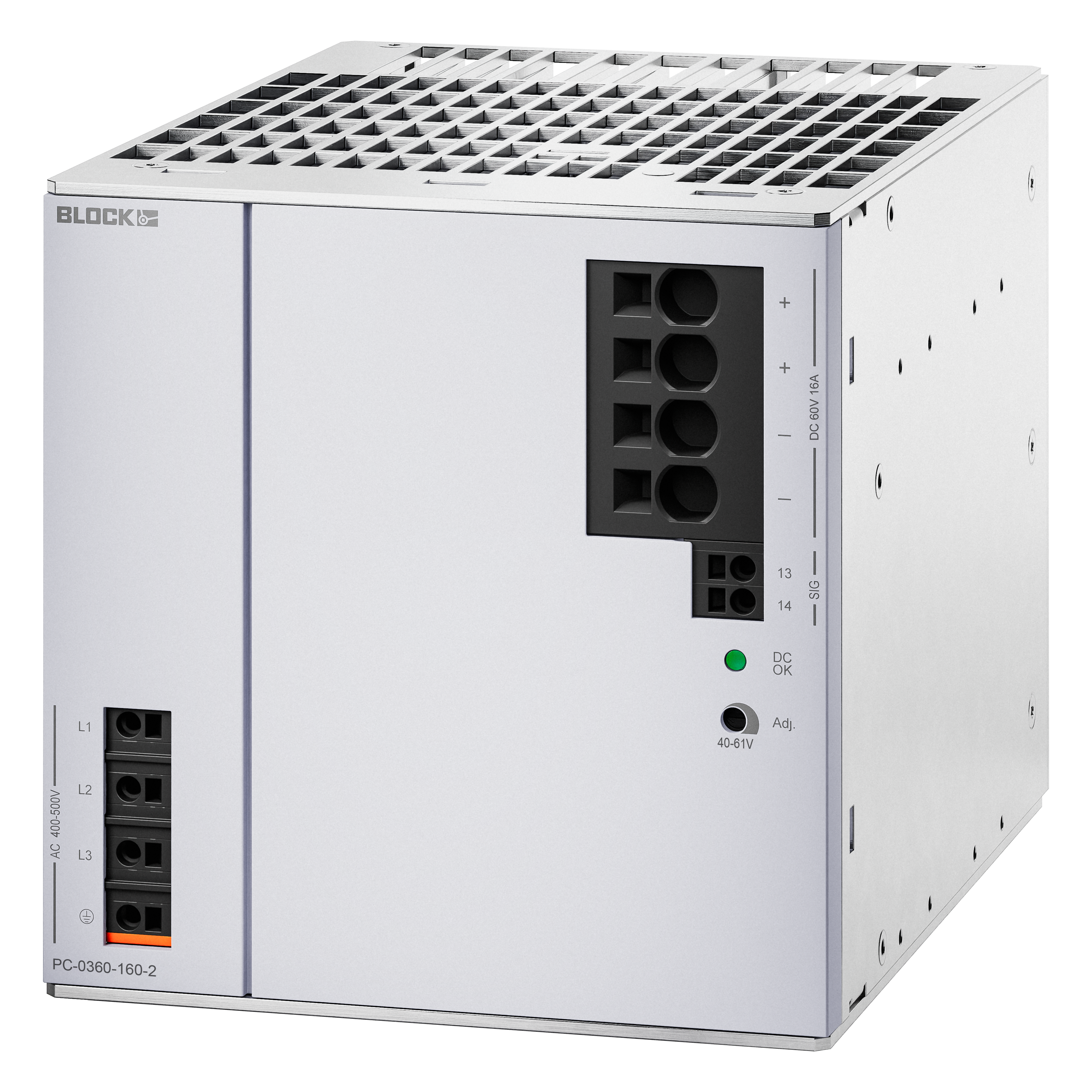

PC-0360-160-2 - Discontinued items - no longer available

Download data sheet

Characteristics

› Stabilised and adjustable output voltage

› Fast tripping of conventional circuit breakers

› DC OK signalling

› Parallel operation

› Push-in terminals

› Robust DIN rail mounting

› Resistant to transient overvoltages up to 4 kV

› With 50 % Power Boost

› 3 years warranty

Product Search

Technical Data

Product	Primary switched mode power supply, three-phase
Order number	PC-0360-160-2
Series	PC 3AC

Rated input voltage	400 Vac to 500 Vac
Input voltage range	390 Vac to 575 Vac
Input voltage range	550 Vdc to 800 Vdc
Rated input current (rated load) (400Vac)	2.02 A
Rated input current (rated load) (500Vac)	1.60 A
Internal input fuse	6.3 AT
Rated frequency range AC	44 Hz to 66 Hz
Rated frequency range DC	0 Hz
Inrush current limitation NTC <	30 A
Recommended preliminary fuse	6A, 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (400Vac)	12.0 ms

Power	960 W
Rated output voltage	60 Vdc
Rated Output Current	16 A
Output voltage range	40 Vdc to 61 Vdc
Output Current Limitation (Constant Current) typ.	18 A
Ripple (rated load) typ.	25 mVss
Power boost	23 A / 5 s (> 420 Vac)
Max. feedback resistance	63 Vdc
Verlustleistung Leerlauf (400Vac)	7.50 W
Verlustleistung Nennlast (400Vac)	68.93 W
Überspannungsschutz des Ausgangs	63.0 Vdc
Parallel connection possible	Yes
Series connection possible	Yes

Signal output	Relay contact
Status display	Green LED

Conditions

Ambient temperature	-25 °C to 70 °C / -13 °F to 158 °F
Storage temperature	-25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation	5 % to 96 %
Cooling type	natural convection
Required minimum distance (side)	0 mm
Required minimum distance (top/bottom)	50 mm
