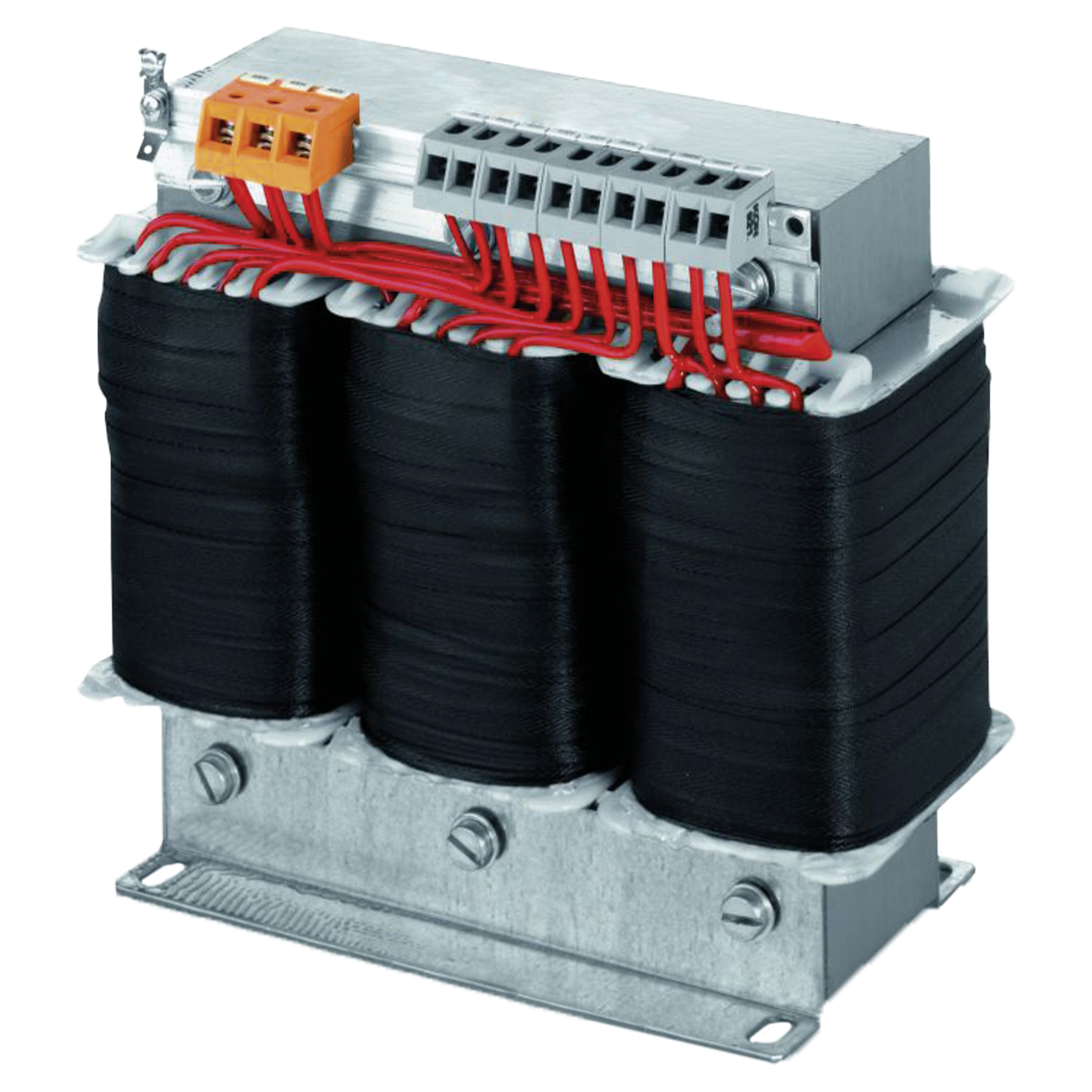

Autotransformer
MSU 2420/05 - Discontinued items - no longer available
| Product | Autotransformer |
| Order number | MSU 2420/05 |
| Power | 5,000 VA |
| Input | 3 x 200 V / 220 V / 230 V / 240 V |
| Output | 3 x 400 V • 7.2 Aac |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 80 W |
| No-Load Losses | 61 W |
| EN insulation class | B (130°C) |
| UL Insulation class | class 130 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 97.3 % |
General
| Switching group | YNa0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Screw plug-in connection |
Size and Weight
| Weight | 34 kg / 74.96 lbs |
| Low Voltage Directive | EN 61558-2-13 |
| RoHS compliant | EN IEC 63000 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
