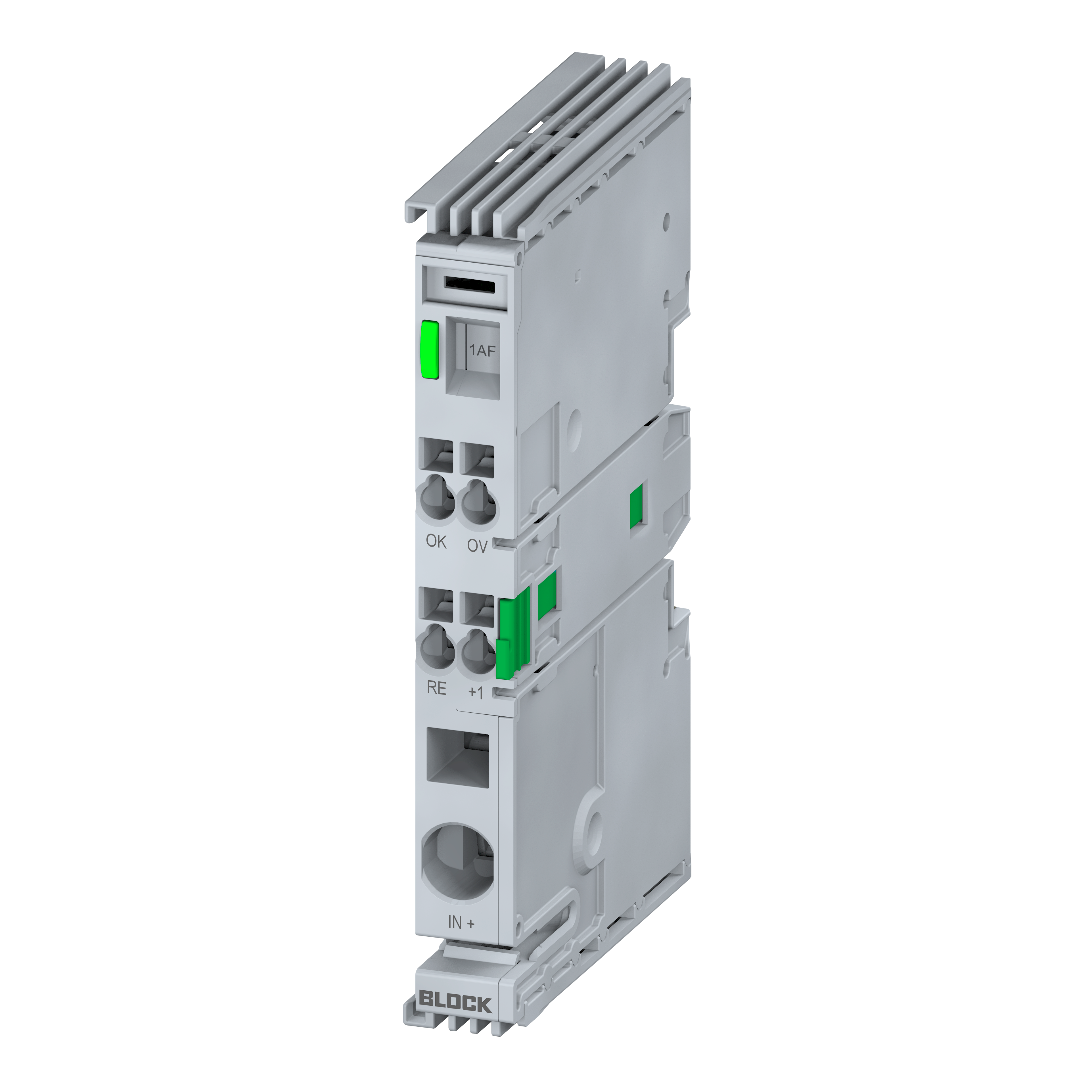

1-Channel circuit-breaker thermomagnetic with fast tripping characteristics, communicative
EB-1724-010-0F
Characteristics
Benefits
› Additional load outputs through output expanders mountable sidewise
› Automatic channel assignment
› Internal fuse adapted to the tripping current
› NEC Class 2
| Product | 1-Channel circuit-breaker thermomagnetic with fast tripping characteristics, communicative |
| Order number | EB-1724-010-0F |
| Series | EB-17F |
Input
| Rated input voltage | 24 Vdc |
| Input voltage range | 18 Vdc to 30 Vdc |
| Max. continuous current of the module | 1 A |
| Max. continuous current feed terminal (+) | 40 A |
| Überspannungsschutz | Suppressordioden |
| Max. ripple of the feeding input voltage | 3 % |
| Switch-on threshold | 17.50 V |
Output
| Rated output voltage | 24 Vdc |
| Rated Output Current | 1 A |
| Rated Output Current per Output Channel | 1 A |
| Output voltage range | 24 Vdc |
| Number of Output Channels | 1 |
| Switch-off threshold | 16.7 V |
| Max. waiting time after switching off an output after an overload (thermal relaxation) | 5 s |
| Max. feedback resistance | 35 Vdc |
| Power losses in stand-by mode | 0.30 W |
| Parallel connection of outputs | Nicht erlaubt |
| Series connection of outputs | Nicht erlaubt |
| Release Characteristics | Thermomagnetic characteristic |
Signaling
| Signal output | Output status, short-circuit proof, DC 24 V, max. 25 mA, high = channel on, low = channel off, error |
| Signal input | Reset: high (min. 500 ms) > low, (high = 15 - 30 Vdc, low = 0 - 5 Vdc) |
| Status display | Green, yellow, red LED |
Environment
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
| Required minimum distance (side) | 0 mm |
| Required minimum distance (top/bottom) | 30 mm |
Protection and Safety
| Degree of pollution | 2 |
Size and Weight
| Width | 12 mm / 0.47 in |
| Height | 99 mm / 3.9 in |
| Depth | 60 mm / 2.36 in |
| Depth incl. DIN TH35 | 64.5 mm / 2.54 in |
| Weight | 0.04 kg / 0.088 lbs |
