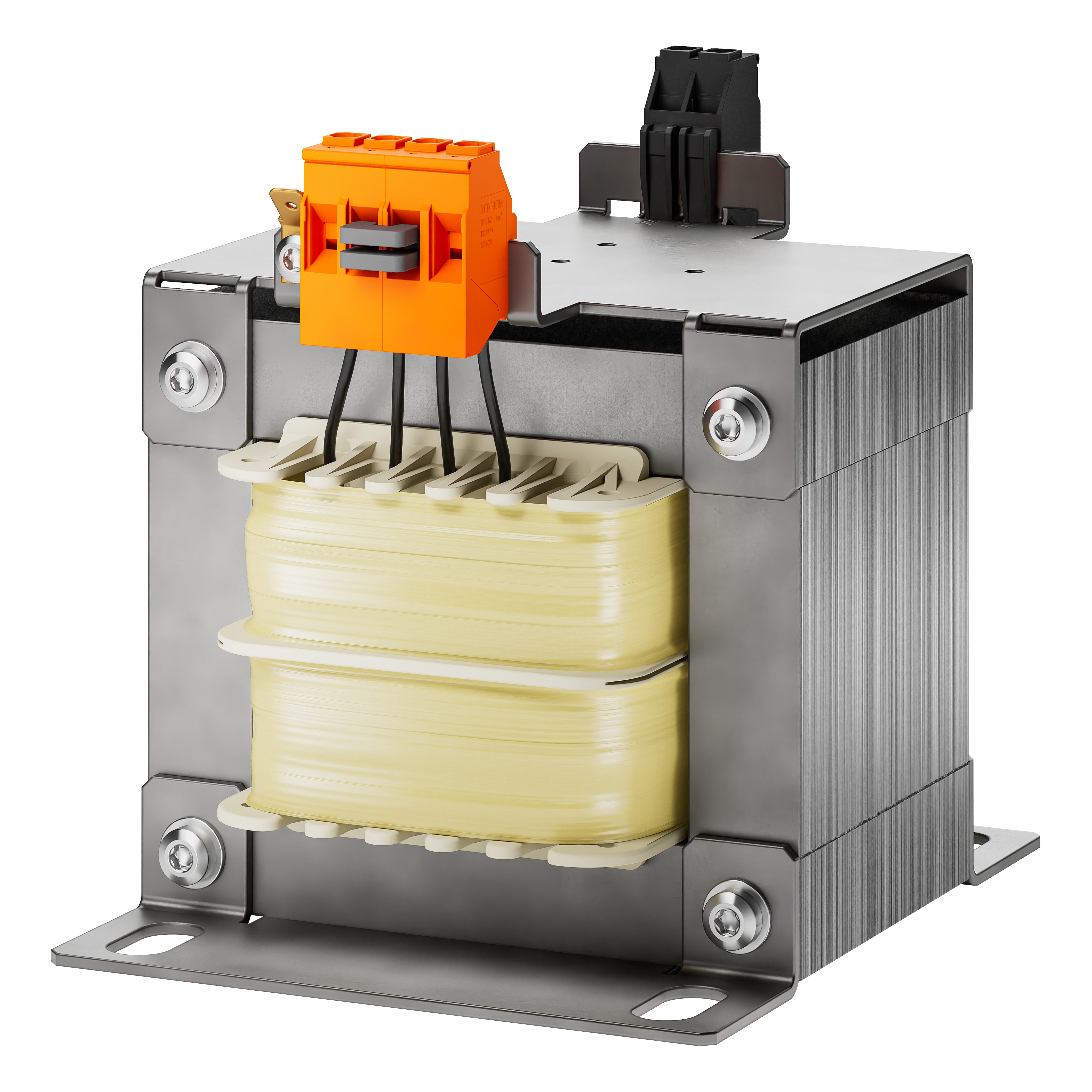

Industrial control transformer
CT-005-048-X1-0 - Only available in USA
Characteristics
Benefits
› Fused versions available
› Versions with DIN rail for additional components available
› Contact protected screw connection terminals
› Jumpers included for primary voltage selection
› Very good corrosion protection and low noise thanks to BLOCK IMPEX vacuum impregnation
› Up to 2,500 VA
| Product | Industrial control transformer |
| Order number | CT-005-048-X1-0 |
| Series | CT |
| Power | 50 VA |
| Input | 2 x 240 V |
| Output |
120 V • 0.42 Aac or 120 V • 0.31 Aac or 24 V • 0.52 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 8 W |
| No-Load Losses | 3 W |
| Short circuit voltage uk | 12.1 % |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 130 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 82 % |
General
| Short circuit proof | not short-circuit proof |
| Switching group | IIii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | I |
| Overvoltage category | III |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Plug-in connection |
Size and Weight
| Width | 66 mm / 2.6 in |
| Height | 92.7 mm / 3.65 in |
| Depth | 120 mm / 4.72 in |
| Weight | 1 kg / 2.205 lbs |
| Low Voltage Directive | EN 61558-2-1 |
| RoHS compliant | EN IEC 63000 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
