Short circuit proof PCB transformer, safety isolating transformer

VB 2,3/1/12

Download data sheet
Image of BLOCK Item: VB 2,3/1/12 Image of BLOCK Item: VB 2,3/1/12 Image of BLOCK Item: VB 2,3/1/12
Picture Objective

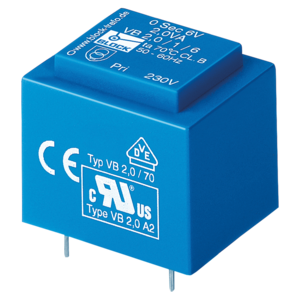

Picture shows VB 2,0/1/6
Picture Objective

Characteristics

General data

Notice of Product Adjustment

As part of the restructuring of our PCB transformer production processes, adjustments will be made to both the visual appearance and technical characteristics. Detailed information is available in the Product Change Notification under Downloads. Please note that slight variations in no-load voltages and efficiency may occur. The pinning remains identical to the previous version.

The PCB transformers of the VB series provide galvanic isolation of the primary circuit from the secondary circuit and are designed with a special construction to ensure absolute short-circuit safety. Additionally, they meet all requirements for supplying SELV (Safety Extra Low Voltage) circuits.

Benefits

› Safety isolating transformer according to EN (IEC) 61558-2-6

› Minimal size with high performance

› Absolutely short-circuit proof

› Self-extinguishing encapsulation material

Product Short circuit proof PCB transformer, safety isolating transformer
Order number VB 2,3/1/12
Series VB
Power 2.3 VA
Input 230 V
Output 12 V • 0.192 Aac
Phases 1
Frequency range 50 Hz to 60 Hz
No-Load Losses 0.9 W
EN Insulation class B (130°C)
UL Insulation class class 105
Duty Cycle 100 %
Wire material Copper
General
Short circuit proof inherently short-circuit proof
Switching group Ii0
Cooling type AN
Environment
Ambient temperature -20 °C to 60 °C / -4 °F to 140 °F
Max. installation height 2,000 m / 6,562 ft
Protection and Safety
Protection type IP 00
Protection class (prepared) II
Overvoltage category III
Degree of contamination 1
Electrical Connections
Input terminal Pin
Output terminal Pin
Size and Weight
Width 32.8 mm / 1.29 in
Height 29.8 mm / 1.17 in
Depth 27.8 mm / 1.09 in
Weight 0.11 kg / 0.243 lbs
Low Voltage Directive EN 61558-2-6
Approval cURus - Recognized UL 5085-1/-2; CSA 22.2
VDE Approval

VDE 0570-2-x (DIN EN 61558-2-x)
Symbol kurzschlussfest
Symbol
Symbol
Symbol
Symbol
