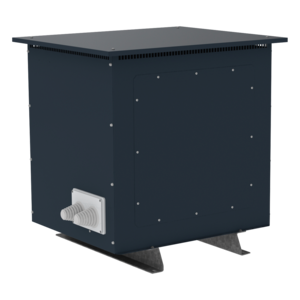

Isolating transformer, three-phase
TT3-A125-4040-0
Characteristics
Benefits
› Safe galvanic isolation
› Very good corrosion protection and low noise thanks to BLOCK IMPEX vacuum impregnation
› Very good discharging of thermal losses by means of optimally arranged cooling channels within the coils
› Integrated crane eyes
› If desired, the transformers can be realised in individual voltages
| Product | Isolating transformer, three-phase |
| Order number | TT3-A125-4040-0 |
| Power | 125,000 VA |
| Input | 3 x 400 V |
| Output | 3 x 400 V • 180.4 Aac |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 3425 W |
| No-Load Losses | 535 W |
| Short circuit voltage uk | 3.5 % |
| EN insulation class | F (155°C) |
| UL Insulation class | class 180 |
| Duty Cycle | 100 % |
| Wire material | Aluminum |
| Efficiency | 96.9 % |
General
| Short circuit proof | not short-circuit proof |
| Switching group | Dyn5 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | I |
| Overvoltage category | III |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Screw terminal |
Size and Weight
| Width | 740 mm / 29.13 in |
| Height | 805 mm / 31.69 in |
| Depth | 400 mm / 15.75 in |
| Weight | 418 kg / 921.53 lbs |
| Low Voltage Directive | EN 61558-2-4 |
| Approval cURus - Recognized | UL 1561; CSA 22.2 |
