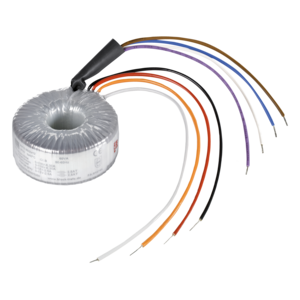

Toroidal transformers, isolating transformer
RTE 400/2x24
Characteristics
General data
The toroidal transformers of the RTE series enable space-saving use due to minimal size with maximum performance. The transformers feature overload protection thanks to the built-in thermal fuse and have a lightweight design. The connections can be soldered directly onto a PCB.
Benefits
› Isolating transformer according to EN (IEC) 61558-2-4
› Dual output coils for series or parallel connection
› Minimal no-load losses
› Excellent temperature behavior due to low magnetic stray field
› Very low noise field
| Product | Toroidal transformers, isolating transformer |
| Order number | RTE 400/2x24 |
| Series | RTE |
| Power | 400 VA |
| Input | 230 V |
| Output | 2 x 24 V • 8.33 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 22.7 W |
| No-Load Losses | 3.2 W |
| Short circuit voltage uk | 5.3 % |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 93.9 % |
General
| Short circuit proof | not short-circuit proof |
| Switching group | Iii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Stranded wire |
| Output terminal | Wire connection |
Size and Weight
| Weight | 4.1 kg / 9.039 lbs |
| Low Voltage Directive | EN 61558-2-4 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
