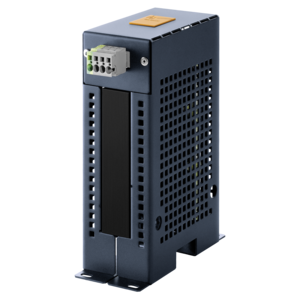

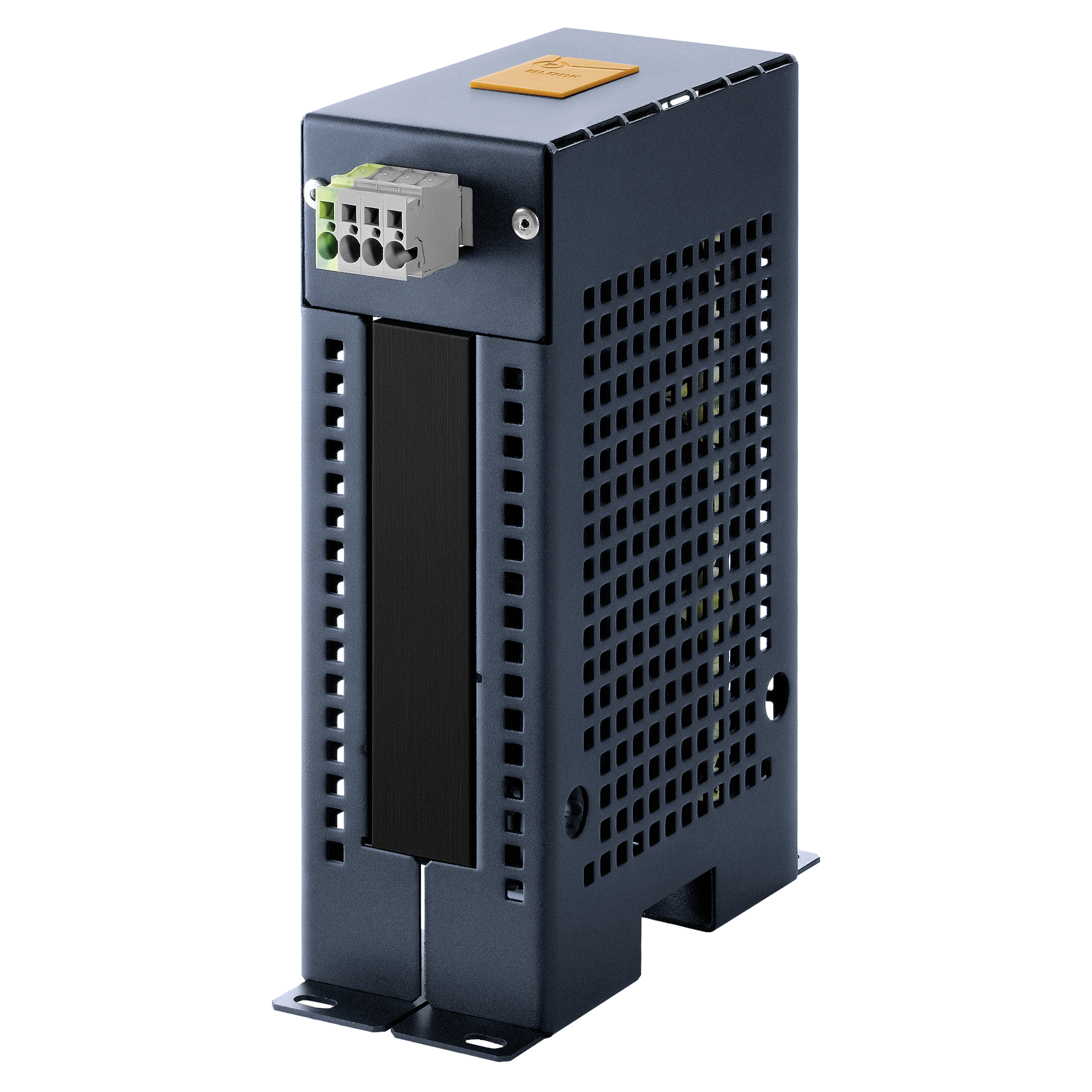

Autotransformer
PVAT3 40 - Discontinued items - no longer available
Characteristics
General data
The autotransformers of the PVAT3 series are used for voltage adjustment without the need for galvanic isolation and are manufactured according to EN (IEC) 61558-2-13. The transformers feature lower weight and a smaller form factor compared to other transformer types with separate windings.
Benefits
› Very high efficiency
› Excellent corrosion protection and low noise emission thanks to BLOCK IMPEX vacuum impregnation
› Short wiring time thanks to spring-loaded terminals
| Product | Autotransformer |
| Order number | PVAT3 40 |
| Series | PVAT3 |
| Power | 1,386 VA |
| Input | 3 x 690 V |
| Output | 3 x 400 V • 2 Aac |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 44.64 W |
| No-Load Losses | 7.83 W |
| EN Insulation class | F (155°C) |
| UL Insulation class | class 155 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 96.4 % |
General
| Short circuit proof | not short-circuit proof |
| Switching group | Ya0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 60 °C / -4 °F to 140 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | I |
| Degree of contamination | 1 |
Electrical Connections
| Input terminal | Spring cage terminal |
| Output terminal | Stranded wire |
| Terminal PE | Plug-in connection |
Size and Weight
| Width | 90 mm / 3.54 in |
| Height | 215 mm / 8.46 in |
| Depth | 170 mm / 6.69 in |
| Weight | 6.6 kg / 14.55 lbs |
| Low Voltage Directive | EN 61558-2-13 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
