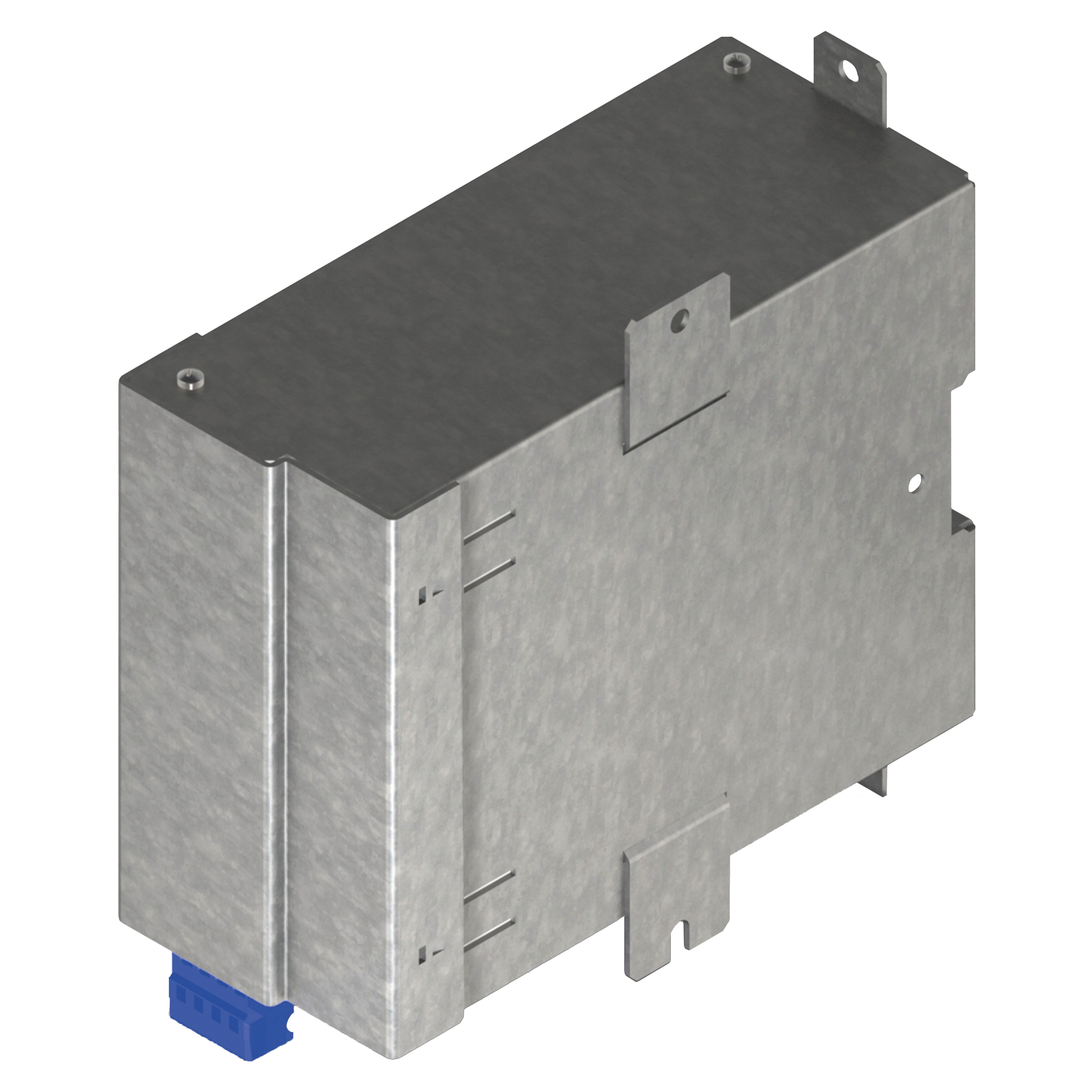

Battery module
PVA 24/3,2Ah
Characteristics
Benefits
› Automatic detection of battery modules at UPS control unit
› Reliable early warning signal when battery life expectancy is declining
› Extended life expectancy through temperature controlled battery management
› Service-friendly spring-loaded connector system
| Product | Battery module |
| Order number | PVA 24/3,2Ah |
| Series | PVA |
Input
| Rated input voltage | 24 Vdc |
| Input voltage range | 24 Vdc |
Output
| Rated output voltage | 24 Vdc |
| Rated Output Current | 20 A |
| Output voltage range | 24 Vdc |
| Rated capacity | 3.2 Ah |
| Parallel connection possible | Yes |
Environment
| Ambient temperature | -15 °C to 40 °C / 5 °F to 104 °F |
| Storage Temperature | -20 °C to 40 °C / -4 °F to 104 °F |
Protection and Safety
| Protection class according to EN 61140 | III |
Size and Weight
| Width | 76 mm / 2.99 in |
| Height | 165 mm / 6.5 in |
| Depth | 175.5 mm / 6.91 in |
| Weight | 4.32 kg / 9.52 lbs |
