Primary switched mode power supply, single-phase

PM-0124-038-0

Characteristics

Benefits

 Stabilised and adjustable output voltage

 Low idling losses 0,1 W

 Constant current limiting without overload shutdown

 DC OK signalling

 Push-in terminals

 Panel installation on mounting rails

 In compliance with EN 60335-1

 3 years warranty

Product Primary switched mode power supply, single-phase
Order number PM-0124-038-0
Series PM 1AC
Input
Rated input voltage 100 Vac to 240 Vac
Input voltage range 85 Vac to 264 Vac
Input voltage range 120 Vdc to 372 Vdc
Rated input current (rated load) (100Vac) 1.50 A
Rated input current (rated load) (230Vac) 0.60 A
Internal input fuse 4 AT
Switch-on time (100Vac) 0.50 s
Switch-on time (230Vac) 0.20 s
Rated frequency range AC 44 Hz to 66 Hz
Rated frequency range DC 0 Hz
Inrush current limitation NTC < 30 A
Recommended preliminary fuse 6A, 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (100Vac) 15.0 ms
Mains failure bridging (rated load) (230Vac) 80.0 ms
Output
Power 91 W
Rated output voltage 24 Vdc
Rated Output Current 3.8 A
Output voltage range 23 Vdc to 28.5 Vdc
Output Current Limitation (Constant Current) typ. 3.8 A
Ripple (rated load) typ. 20 mVss
Power factor 0.5
Max. power loss 20 W
Max. feedback resistance 35 Vdc
Verlustleistung Leerlauf (230Vac) 2.80 W
Verlustleistung Nennlast (230Vac) 14.00 W
Überspannungsschutz des Ausgangs 40.0 Vdc
Parallel connection possible Yes
Series connection possible Yes
Signaling
Signal output Relay contact
Status display Green LED
Environment
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 50 mm
Protection and Safety
Degree of pollution 2
Protection class according to EN 61140 III, without PE connection
Size and Weight
Width 52 mm / 2.05 in
Height 90 mm / 3.54 in
Depth 111 mm / 4.37 in
Weight 0.39 kg / 0.86 lbs

Conrad Electronic SE

Product link

reichelt elektronik GmbH

Product link

Premier Farnell Limited

Product link

This could also be of interest to you

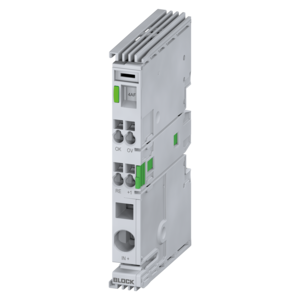

EB-1724-040-0F
1-Channel circuit-breaker thermomagnetic with fast tripping characteristics, communicative • IN: 24 Vdc • OUT: 24 Vdc 1x4 A
Product details
EB-2724-040-0
1-Channel circuit breaker thermomagnetic • IN: 24 Vdc • OUT: 24 Vdc 1x4 A
Product details
EB-1824-040-0
1-Channel circuit breaker current-limiting, communicative • IN: 24 Vdc • OUT: 24 Vdc 1x4 A
Product details

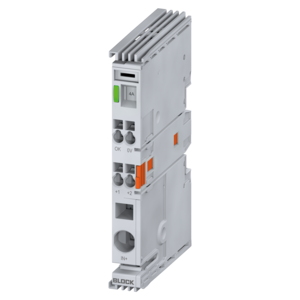

EB-2824-040-0
1-Channel circuit breaker current-limiting • IN: 24 Vdc • OUT: 24 Vdc 1x4 A
Product details

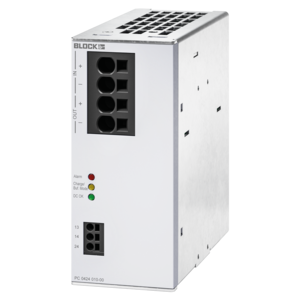

PC-0424-010-00
