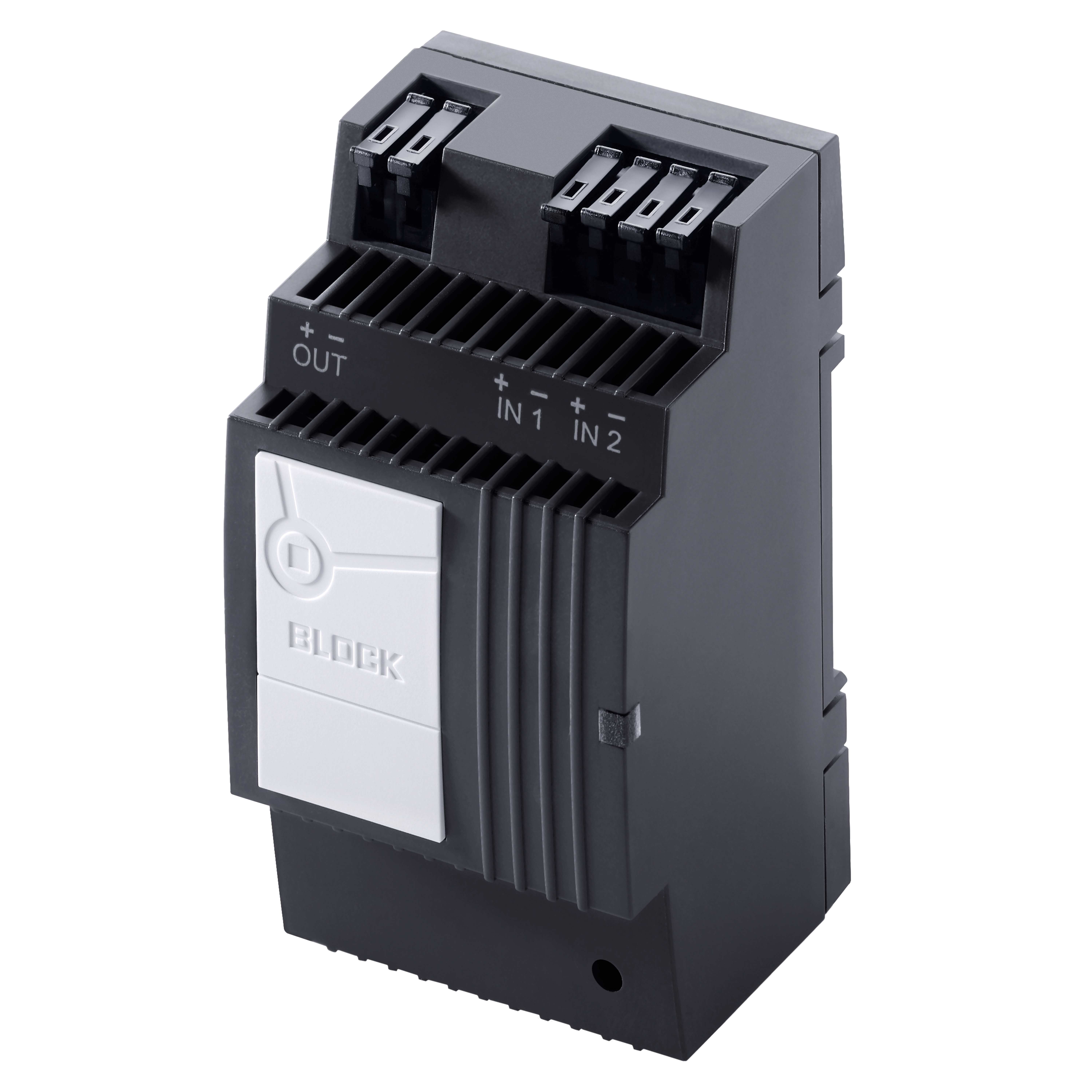

Redundancy module
PELR 24/24-5 - Discontinued items - no longer available
Characteristics
Benefits
› Stabilised and adjustable output voltage
› Low idling losses 0,1 W
| Product | Redundancy module |
| Order number | PELR 24/24-5 |
| Series | PELR |
Input
| Rated input voltage | 24 Vdc |
| Input voltage range | 11 Vdc to 30 Vdc |
| Rated input current | 5 A |
Output
| Rated output voltage | 24 Vdc |
| Rated Output Current | 10 A |
| Output voltage range | 10 Vdc to 36 Vdc |
| Max. voltage drop between input and output | 700 mV |
| Max. power loss | 7 W |
| Max. feedback resistance | 35 Vdc |
| Parallel connection possible | Ja |
Signaling
| Status display | Green LED |
Environment
| Ambient temperature | -25 °C to 55 °C / -13 °F to 131 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 30 % to 85 % |
| Cooling type | natural convection |
Protection and Safety
| Protection class according to EN 61140 | III, without PE connection |
Size and Weight
| Width | 54 mm / 2.13 in |
| Height | 89 mm / 3.5 in |
| Depth | 59 mm / 2.32 in |
| Weight | 0.16 kg / 0.353 lbs |
| Zulassung Schiff |
DNV-CG-0339 |
