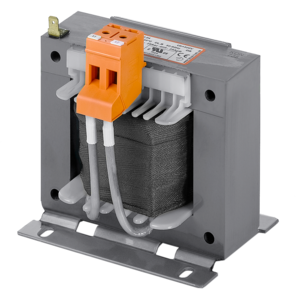

Line reactor, three-phase

LR3-AE125-404-0

Characteristics

Benefits

 Use as line reactor, commutating reactor or PFC reactor

 Ensuring the short-circuit voltage of 4 % to the mains

 Power harmonic damping

 Starting current limitation

 Increases the service life of consumers

 Low ripple

 Bridging voltage dips

 Peak current limitation

 Very good corrosion protection and low noise due to vacuum impregnation

 AD and AE types with UL approval

Product Search
Product Line reactor, three-phase
Order number LR3-AE125-404-0
Inductance 3x 0.24 mH
Rated current 3x 125 Aac
Linear current 3x 187.5 Aac
Rated voltage range 0 V to 690 V
Rated voltage 400 V
Phases 3
Frequency range 50 Hz to 60 Hz
Short circuit voltage 4% @ 400 V
Motor or converter power 75 kW / 100.58 HP
EN insulation class H (180°C)
UL Insulation class class 180
Duty Cycle 100 %
Power loss 300.00 W
Wire material Aluminum
General
Duty Cycle 100 %
Cooling type AN
Switching group III0
Environment
Ambient temperature -10 °C to 40 °C / 14 °F to 104 °F
Max. installation height 182 m / 597 ft
Protection and Safety
Protection type IP 00
Protection class (prepared) I
Degree of contamination 2
Electrical Connections
Input terminal Bolt connection
Output terminal Bolt connection
Terminal PE Bolt connection
Size and Weight
Width 405 mm / 15.94 in
Height 182 mm / 7.17 in
Depth 189 mm / 7.44 in
Weight 20.3 kg / 44.75 lbs
Low Voltage Directive EN 61558-2-20
RoHS compliant EN IEC 63000
Approval cULus - Listed UL 508; CSA 22.2
