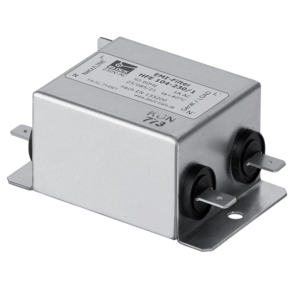

Radio interference suppression filter, low leakage current
HFE 104-230/20
Characteristics
Benefits
› For general requirements
› Low leakage current
› Single-stage filter concept
› Efficient filter effect against line-bound interference emissions
› Increase in the interference immunity of the connected consumer
| Product | Radio interference suppression filter, low leakage current |
| Order number | HFE 104-230/20 |
| Series | HFE 104 |
| Inductance | 2.4 mH |
| Rated current | 20 Aac |
| Rated voltage range | 0 V to 250 V |
| Rated voltage | 230 V |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | A (105°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Power loss | 5.90 W |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
Environment
| Ambient temperature | -25 °C to 40 °C / -13 °F to 104 °F |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Flat plug connection |
| Output terminal | Flat plug connection |
| Terminal PE | Flat plug connection |
Size and Weight
| Width | 84 mm / 3.31 in |
| Height | 38 mm / 1.5 in |
| Depth | 124.5 mm / 4.9 in |
| Weight | 0.7 kg / 1.543 lbs |
| RoHS compliant | EN IEC 63000 |
