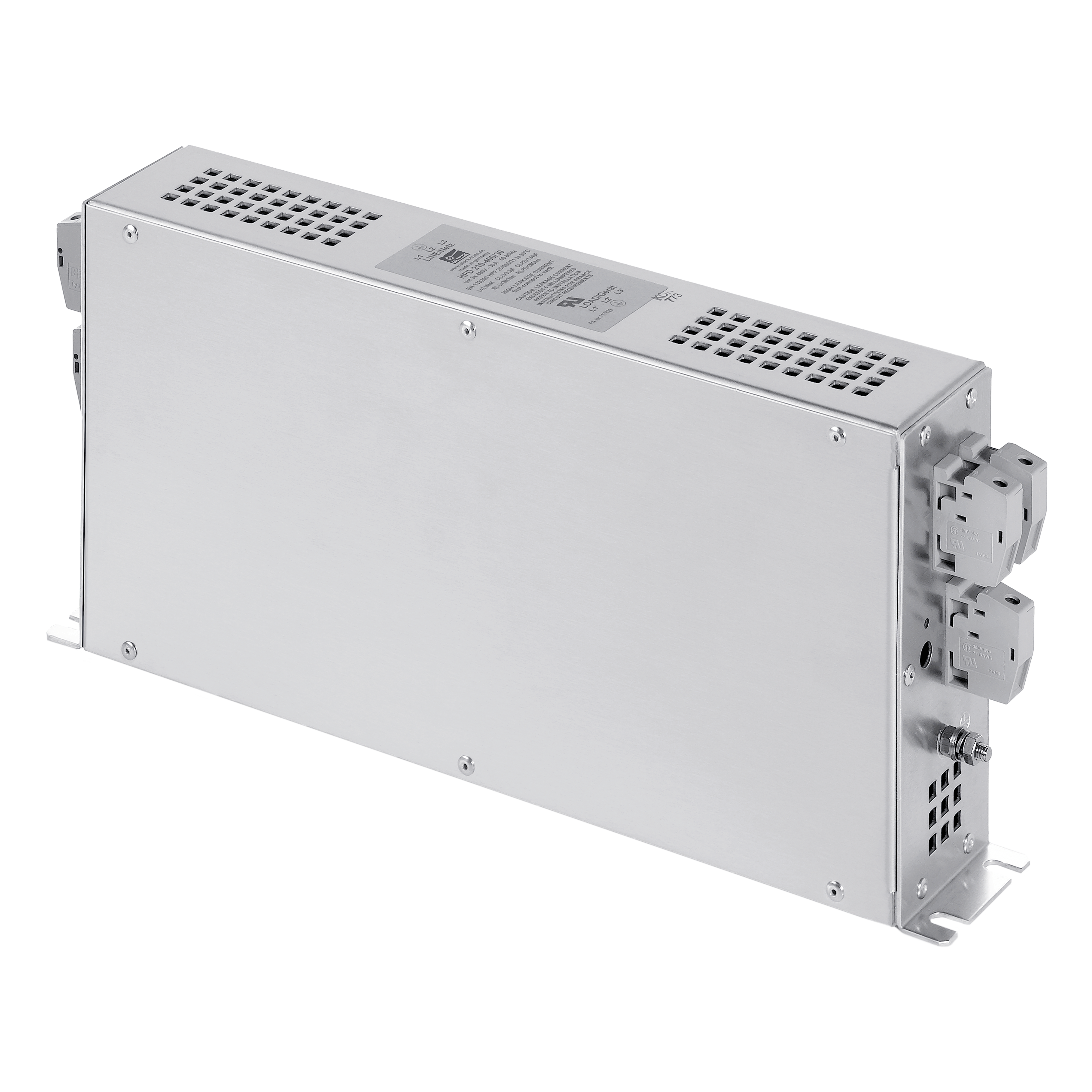

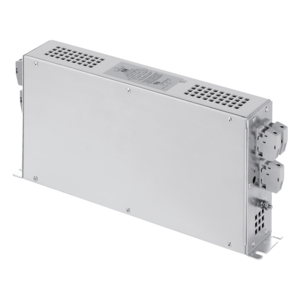

Radio interference suppression filter, three-phase
HFD 210-500/16 - Discontinued items - no longer available
Characteristics
Benefits
› For general requirements
› Two-stage filter concept
› Efficient filter effect against line-bound interference emissions
› Increase in the interference immunity of the connected consumer
| Product | Radio interference suppression filter, three-phase |
| Order number | HFD 210-500/16 |

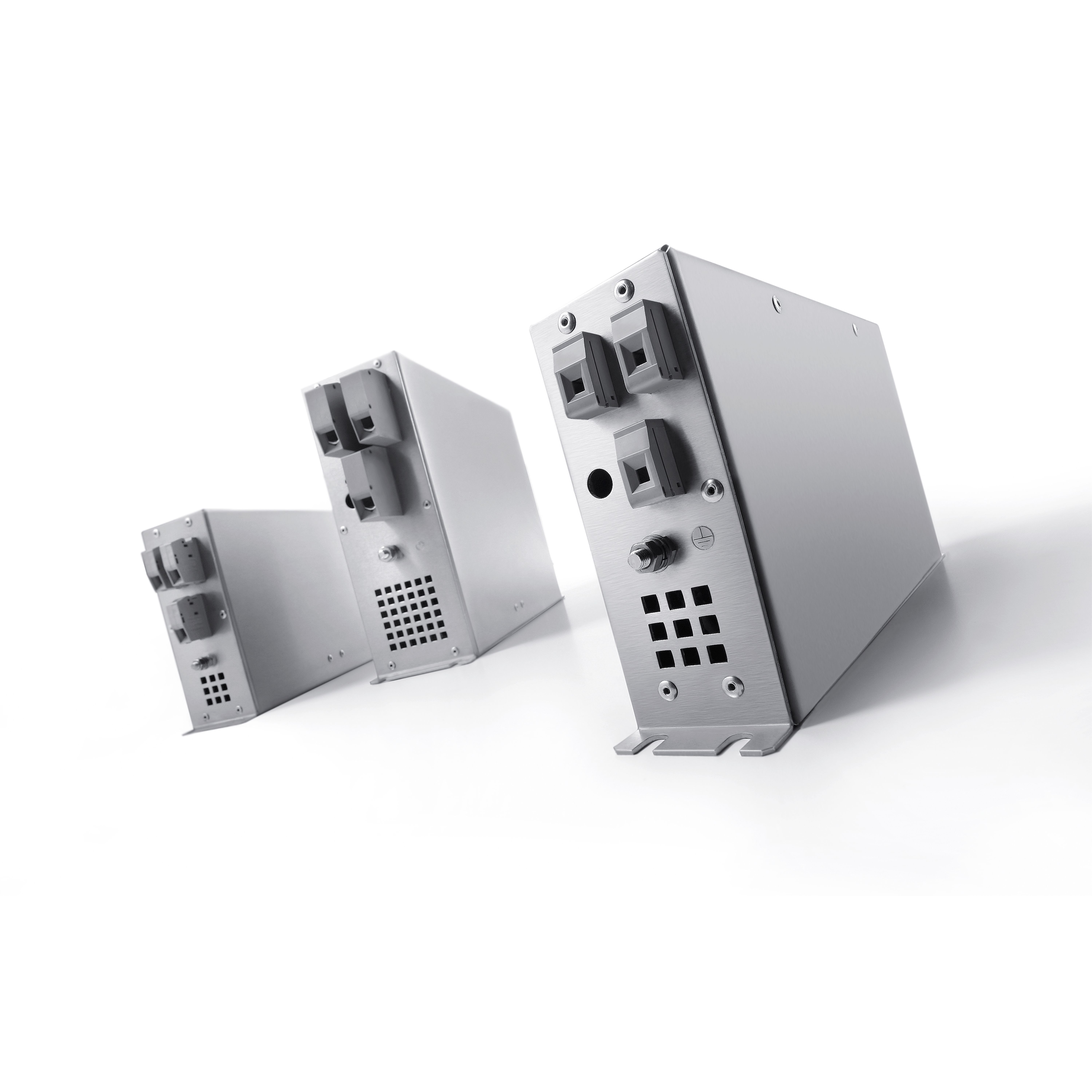

| Series | HFD 210 |
| Inductance | 3x 3.27 mH |
| Rated current | 3x 16 Aac |
| Rated voltage range | 0 V to 520 V |
| Rated voltage | 480 V |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | A (105°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
Environment
| Ambient temperature | to 50 °C / to 122 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP 20 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 305 mm / 12.01 in |
| Height | 142 mm / 5.59 in |
| Depth | 55 mm / 2.17 in |
| Weight | 1.756 kg / 3.871 lbs |
| RoHS compliant | EN IEC 63000 |
| Approval cURus - Recognized | UL 1283; CSA 22.2 |
