Inrush current limiter, current-controlled with no-load detection

ESG 5 - Discontinued items - no longer available

Download data sheet

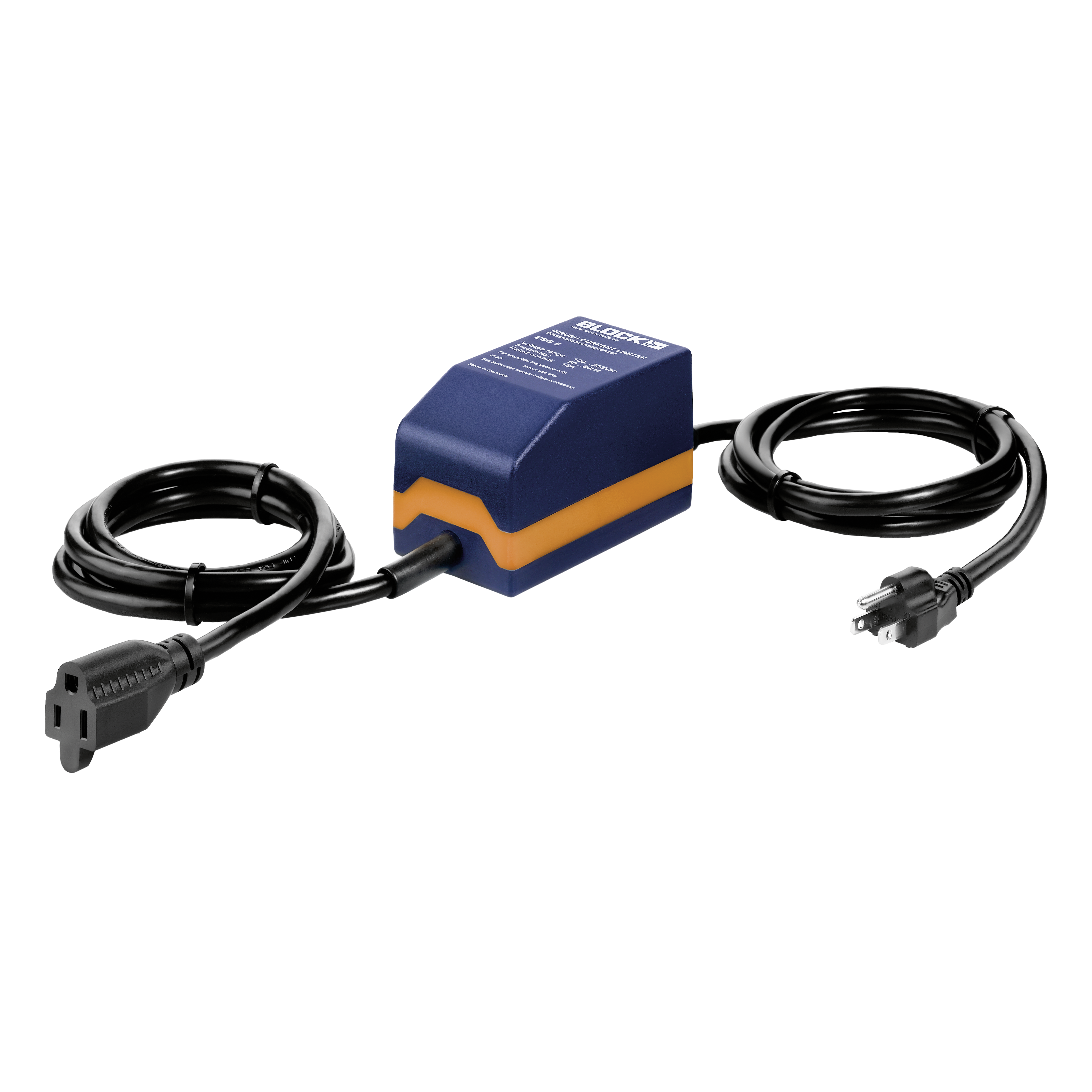

Image of BLOCK Item: ESG 5 - Discontinued items - no longer available

Characteristics

Benefits

› Dynamic limit times for optimum starting of consumers with high inrush currents

› Current-controlled with no-load detection, hence full current limit protection, even if momentarily switched back on

› Robust plastic enclosure for rail mounting, e.g. in consumer units or meter mounting boards

› May be used anywhere for stationary and mobile applications

› High degree of protection

› 2 x Connection cable with plug and coupling NEMA5-15 (USA) for mobile use

Product Inrush current limiter, current-controlled with no-load detection
Order number ESG 5
Series ESG
Rated voltage 115 V
Rated voltage range 99 V to 132 V
Frequency range 50 Hz to 60 Hz
Environment
Ambient temperature 0 °C to 40 °C / 32 °F to 104 °F
Protection and Safety
Protection type IP 65
Degree of contamination PD 2
Overvoltage category II
Size and Weight
Width 66 mm / 2.6 in
Height 70 mm / 2.76 in
Depth 121 mm / 4.76 in
Weight 0.68 kg / 1.499 lbs
