Laboratory power supply

BRS 2200 - Discontinued items - no longer available

Download data sheet
Image of BLOCK Item: BRS 2200 - Discontinued items - no longer available Image of BLOCK Item: BRS 2200 - Discontinued items - no longer available

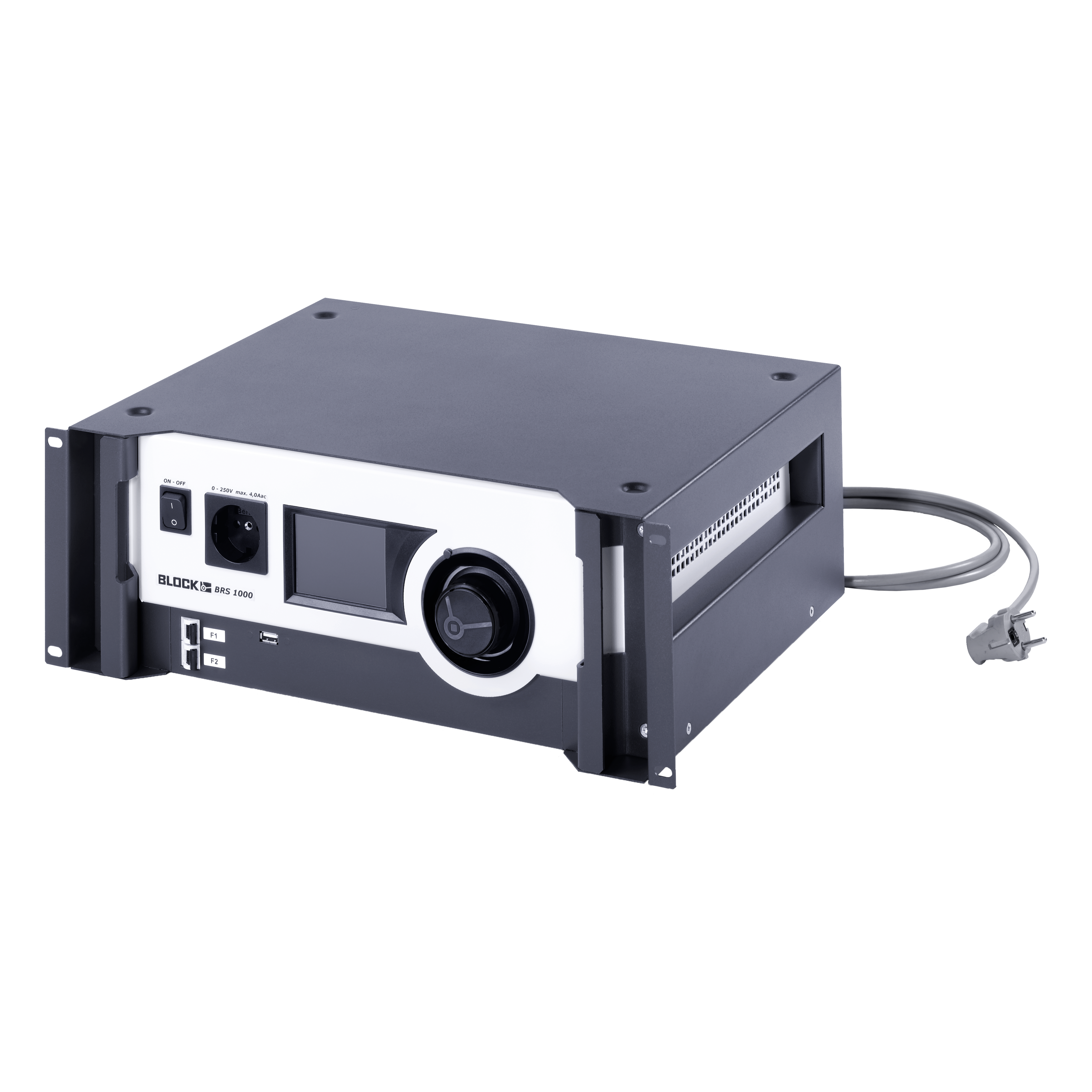

Picture shows BR 1000
Picture Objective

Characteristics

Benefits

› RMS and peak values of current and voltage

› Graphical visualisation of current and voltage curves

› Other parameters: active, reactive and apparent power and power factor

› Mains connection lead with safety plug, safety socket

› Plug-in rack for installation in 19 inches cabinets

Product Laboratory power supply
Order number BRS 2200
Series BRS
Power 2,200 VA
Phases 1
Frequency range to 50 Hz
EN Insulation class B (130°C)
Duty Cycle 100 %
Wire material Copper
Efficiency 89 %
General
Short circuit proof conditionally short-circuit proof
Switching group Ii0
Cooling type AN
Environment
Ambient temperature -20 °C to 40 °C / -4 °F to 104 °F
Max. installation height 2,000 m / 6,562 ft
Protection and Safety
Protection type IP 20
Protection class (prepared) I
Electrical Connections
Input terminal Protective contact plug
Output terminal Protective contact socket
Size and Weight
Width 482 mm / 18.98 in
Height 210 mm / 8.27 in
Depth 364 mm / 14.33 in
Weight 45.6 kg / 100.531 lbs
Image of BLOCK Item: BR 2200

BR 2200

Laboratory power supply
Input voltage Output voltage Power

230 V

0 V to 250 V

2,200 VA
