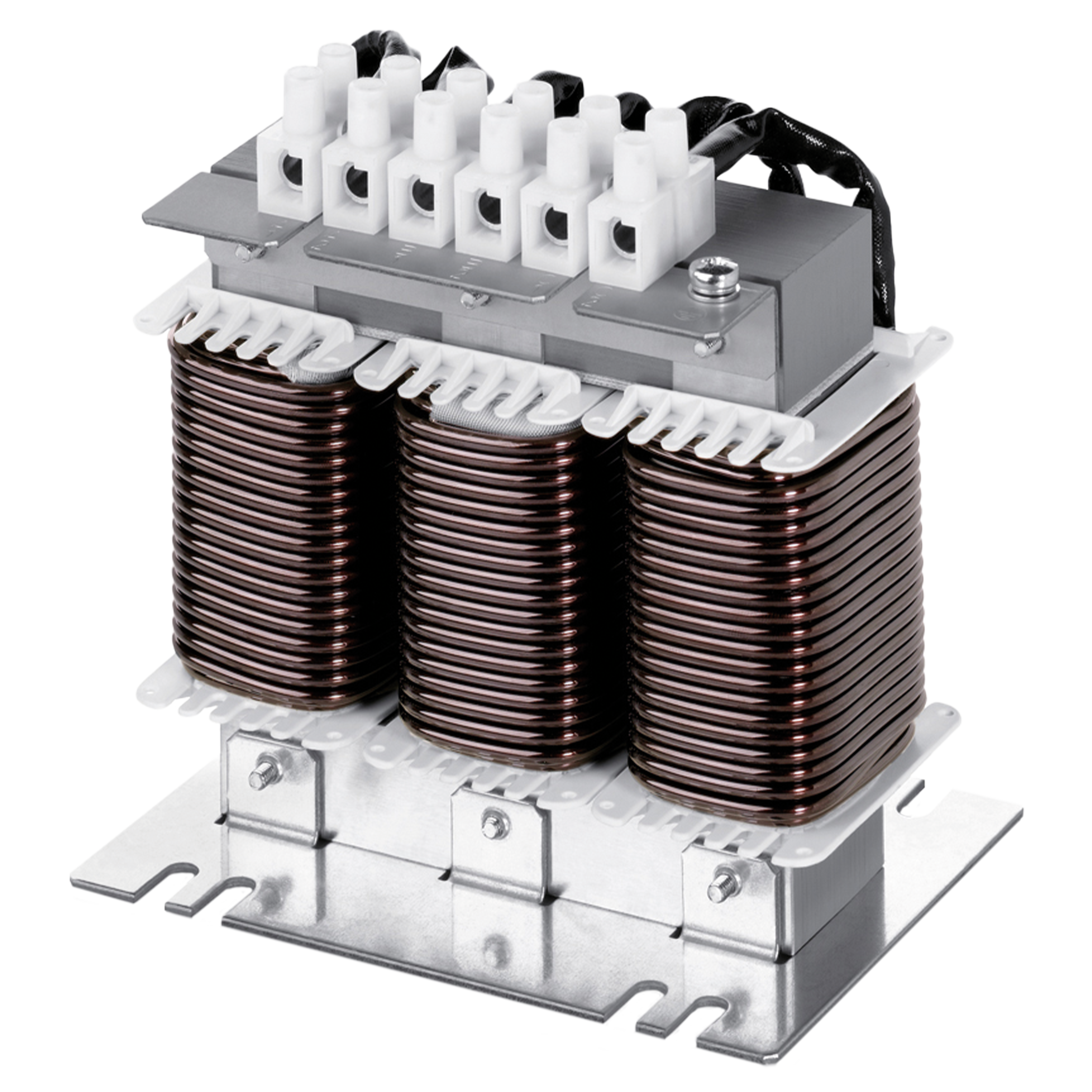

Line reactor, three-phase
ALR3 40-2/30 - Discontinued items - no longer available
Characteristics
Benefits
› Use as line reactor, commutating reactor or PFC reactor
› Ensuring the short-circuit voltage of 2 % to the mains
› Power harmonic damping
› Starting current limitation
› Increases the service life of consumers
› Low ripple
› Briding voltage dips
› Peak current limitation
› Very good corrosion protection and low noise thanks to BLOCKIMPEX vacuum impregnation
› Multifunctional fixing rail
| Product | Line reactor, three-phase |
| Order number | ALR3 40-2/30 |
| Series | ALR3 |
| Inductance | 3x 0.41 mH |
| Rated current | 3x 30 Aac |
| Linear current | 3x 0 Aac |
| Rated voltage range | 0 V to 690 V |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | F (155°C) |
| UL Insulation class | class 155 |
| Wire material | Copper |
General
| Cooling type | AN |
Environment
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Euro terminal block |
Size and Weight
| Width | 155 mm / 6.1 in |
| Height | 177 mm / 6.97 in |
| Depth | 110 mm / 4.33 in |
| Weight | 2.9 kg / 6.393 lbs |
| Low Voltage Directive | EN 61558-2-20 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
