Uninterruptible power supplies protect 24 V supply voltages from unexpected power failures. Capacitive UPS solutions from BLOCK’s Power Compact series provide 24 V supply voltage up to the minute range. Featuring ultracapacitors they are designed for long lifetimes. For longer buffer periods, we also offer space-saving Power Compact combination modules as uninterruptible power supplies with battery modules. The intelligent battery management and short charging times ensure maximum system availability.
SWITCHED MODE POWER SUPPLY + CHARGE AND CONTROL UNIT
The uninterruptible power supply PowerCompact Combi features an economic DC 24 V switched mode power supply with basic requirements, tailored for the supply of industrial PCs and a charge and control unit for optimal battery management. The Combi UPS manages and monitors the battery module and provides an early warning signal for low remaining battery life.
› Reliable early warning signal for battery exchange
› Fast tripping of standard circuit breakers
› Extensive function monitoring
› Extended battery life through optimal charge management
› Push-in connection technology
› Reliable supply of industrial PCS
› Optional with Power Boost
CAPACITIVE UPS
The new capacitive UPS is based on ultra-capacitors and provides a long service life, even at high ambient temperatures. It therefore offers higher safety levels in 24 V mains. During a power failure, the basic module provides uninterrupted currents of up to 20 A. Thanks to fl exible expansion options, the output current can be increased to 40 A by connecting additional capacity modules and the buffer time can be scaled as required. All relevant data can be retrieved at any time from a potential-separated USB interface.
› Up to 40 A output current with capacity module
› Expandable with up to three capacity modules
› Long service life of the capacitors
› 3 A charge current for short charging times
› High power density
› Long buffer times
› Two isolated signal contacts
› Isolated USB interface
› Decoupled output
› Constant output voltage in buffer mode

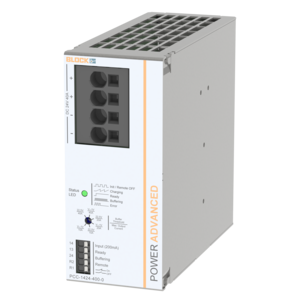

CHARGE AND CONTROL UNIT
The new charge and control unit offers the highest system availability through intelligent battery management and short charging times, even with large battery capacities. In the event of a power failure, they can be used in 12 V, 24 V and 48 V mains up to 40 A without power interruption. As the connected batteries are permanently monitored, an early warning is issued in the event of low remaining service life. In addition to parameterization, the powerful confi guration software UPS control also ensures an overview of the operating conditions of the UPS at all times.
› Up to 40 A output current
› 5 A charging current for short charging times
› Start from battery
› Three isolated signal contacts
› Isolated USB interface
› Decoupled Output
› Reliable early warning signal for battery exchange
› Maximum reliability due to "battery control" technology
› Reliable supply of industrial PCS
